Mica sheet full auto winder

Introduction:SHL-C1040P Mica sheet full auto winder

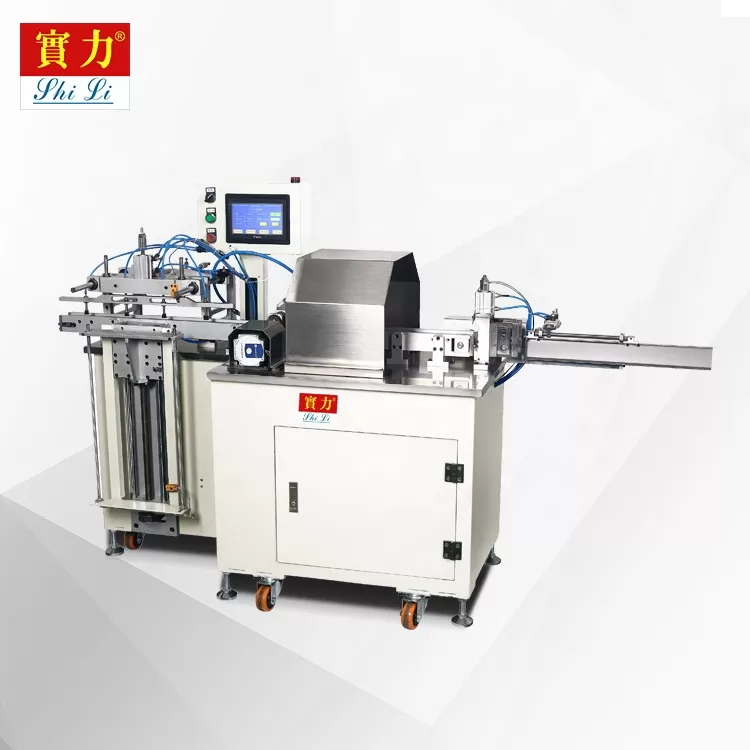

SHL-C1040P Mica sheet full auto winder

Application range:

This machine is suitable for winding heating wire around mica sheet and heating strip of super plastic machine, water dispenser, electric stew cup, slow cooker, injection molding machine, yogurt machine, etc.

Machine configuration:

Winding motor	Stepping motor
Feeder motor	Stepping motor
Controller system	7 inch touch screen + power
Ball screw	Taiwan brand
Pneumatic part	Xingchen brand

Product Parameters

Power	220V 50HZ	Max feeder sheets	200 pcs
Motor power	500W	Winding distance	0-20mm
Winding speed	100-300rpm	Wire size range	0.1-0.5mm
Machine size	19060115	Mica sheet size	L 100-1000mm W 8-40mm D 0.2-1mm
Net weight	235kg	Winding mode	single section/ Multistage (1-10section)
