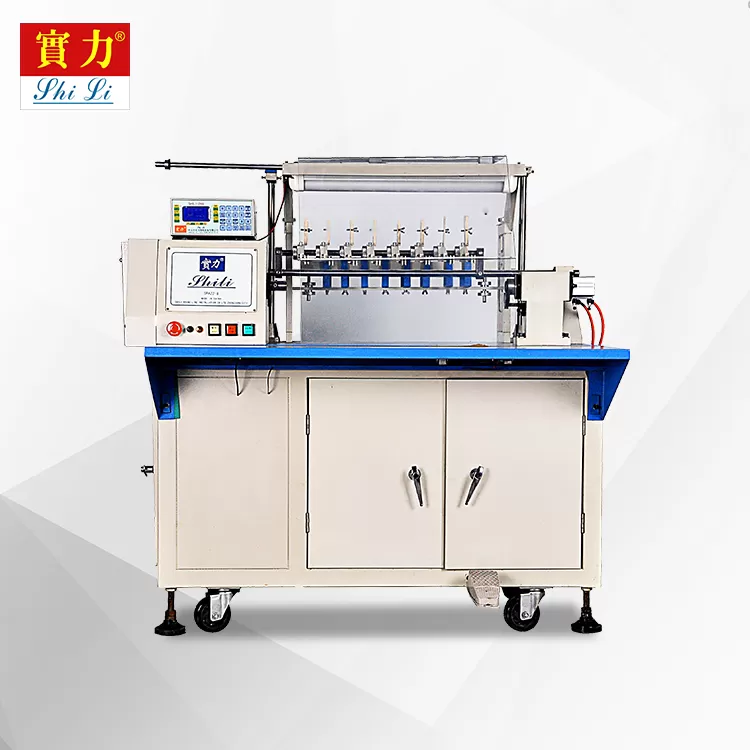

Eight spindle winding machine

Eight spindle winding machine

Product Parameters

Machine Feature:
This machine design of 32 bit controller chip, It’ll be faster, and higher reliability.In Chinese and English display,easy to
operation,winding data retention
after power failure, not to discarded products.All the parts for this machine are imported prats,such as:Japan Bearing (NSK,NTN),
Japan BANDO belt ,
Japan GATES belt ,Taiwan Ball screw (TBI),Taiwan Transducers and so on.
Change the fixture has two choice, with pneumatic or manual. The machine can be used for multi connected, coil automatic wire
winding of multilayer
type , it can winding 1-8 wire at one time.can also be pass the groove automatically . Can winding 1-32 coils in the winder length
range. There are two alternate use of the square shaft rotatable about the coil diameter 25MM-180MM, high production efficiency.
For the characteristics of the machine winding ,the machine body use thick cast iron , The vibration and noise of smaller
machines, it also have when
wire cutting the machine will stop function, not discarded products.

Main configuration:
a. Row of thread with eight winding head, the winding head length and elevation can beeasily adjusted.
b.Equipped with mobile wire frame (including eight group bobbin and eight spools ,size is 120mm × 300mm diameter ).
c. With two mold spindle :dimensions 16 × 16 × 630mm
d. Supply frame size is 800 × 800 × 780mm.
e. Install brake resistors, the position more accurately

Application range:
Can winding a variety of motor coil groups, including industrial motors, air conditioner motors, washing machine motors, fan
motors.
