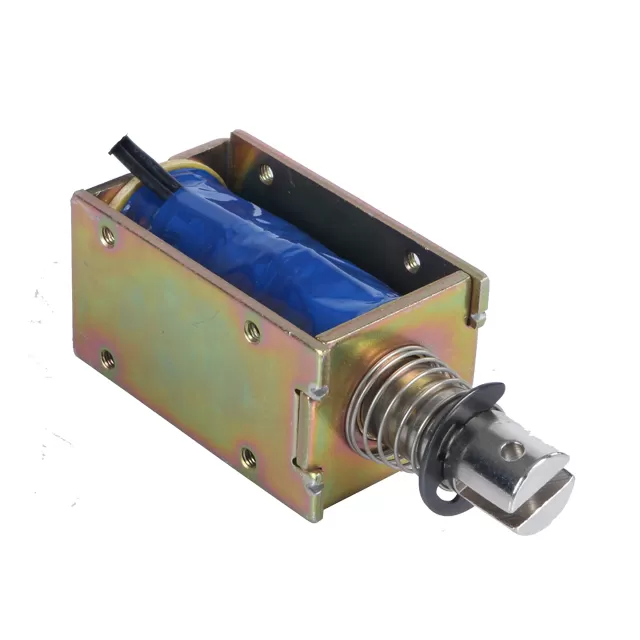

Pull Push Open Frame Solenoid

Introduction:12Mm Stroke Dc Pull Push Open Frame Solenoid

12Mm Stroke Dc Pull Push Open Frame Solenoid


12Mm Stroke Dc Pull Push Open Frame Solenoid
Brand
Landa
Model Number
SQ1253
Rated Voltage (V)
DC12/24
Rated Power(W)
7.2-72
Work Model
Pull Push Type
Holding Force (N)
1-20
Stroke(mm)
0-12
Reset Time(s)
0.2
Service Life
500 Thousand Times
Certification
CE,ROHS,ISO9001,UL
Material
Iron
Lead Wire Length(mm)
200
Install Style
screw
Tolerance of Dimension
gb/t1804-m
Water-proof
IP65
Insulation Class
B
Hi-Pot Test
AC 600V 50/60Hz 2s
Non-excitation Holding Force
0
Residual Magnefism
/
Duty Cycle
1-100%
Working Temperature
-10°C-100°C
Thread Size(mm)
M3
Thread Depth(mm)
/
Payment Term
TT,PAYPAL
Sample Order
Yes
Warranty
1 Year
MOQ
10 pcs
Supply Ability
5000 pcs per Week
Delivery Time
3 Days
Port of Loading
Zhongshan
