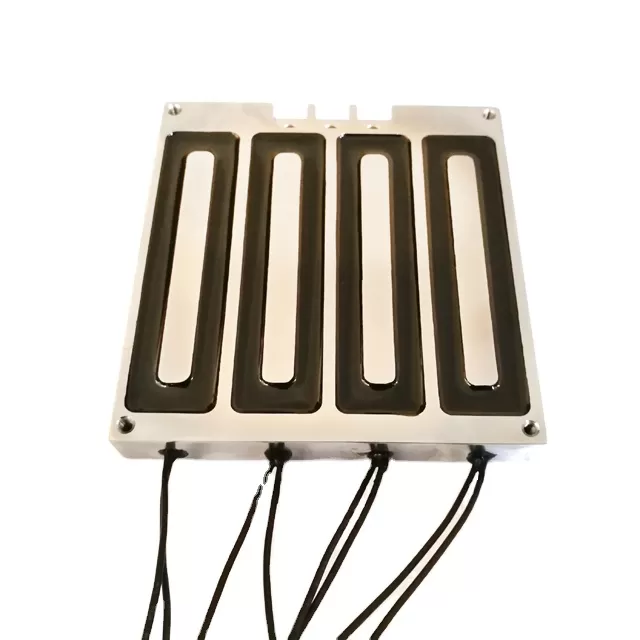

Introduction:Factory Customized Machine Grinder Electric Magnetic Sheet Plate 12v Dc 20w Multi-core Square Holding Solenoid Electromagnet
Factory Customized Machine Grinder Electric Magnetic Sheet Plate 12v Dc 20w Multi-core Square Holding Solenoid Electromagnet
Brand | Landa | Model | HY12612117 |
Place of Origin | Guangdong, China | Certification | CE,ROHS,ISO9001,UL |
Dimension(L*W*H) | 126*121*17 mm | Rated Voltage (V) | DC 24 |
Rated Power(W) | 20 | Work Model | Holding Type |
Holding Force (N) | 5000-10000 | Stroke(mm) | 0 |
Reset Time(s) | 0.2 | Service Life | 500 Thousand Times |
Material | Iron | Lead Wire Length(mm) | / |
Install Style | Screw | Tolerance of Dimension | gb/t1804-m |
Water-proof | IP65 | Insulation Class | B |
Residual Magnefism | / | Duty Cycle | 50%-100% |
Working Temperature | -10°C-100°C | Thread Size(mm) | M4 |
Thread Depth(mm) | 8 | Payment Term | TT,PAYPAL |
Sample Order | Yes | Warranty | 1 year |
MOQ | 2 pcs | Supply Ability | 5000 pcs per Week |
Delivery Time | 5 Days | Port of Loading | Zhongshan |
Weight | Packaging Details | Shipment Details | ||||
N.W.(KG) | G.W.(KG) | Product Size(mm) | Carton Box Size(mm) | 20GP | 40GP | 40HQ |
4.5 | 4.5 | 126*121*17 | 350*310*180 | / | / | / |
