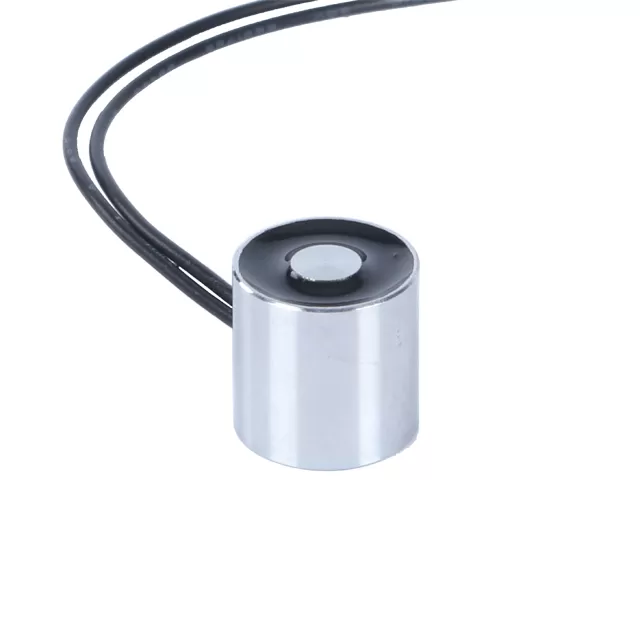

Introduction:Miniature 1.5N Force Dc 3v 6v 1w Circular Holding Solenoid Micro Electromagnet for Electric Toys
Miniature 1.5N Force Dc 3v 6v 1w Circular Holding Solenoid Micro Electromagnet for Electric Toys
Brand | Landa | Model | H1010 |
Place of Origin | Guangdong, China | Certification | CE,ROHS,ISO9001 |
Dimension(L*W*H) | 10*10*10mm | Rated Voltage (V) | DC 3/6 |
Rated Power(W) | 1 | Work Model | Holding Type |
Holding Force (N) | 1-1.5 | Stroke(mm) | 0 |
Reset Time(s) | 0.2 | Service Life | 500 Thousand Times |
Material | Iron | Lead Wire Length(mm) | 100 |
Install Style | screw | Tolerance of Dimension | gb/t1804-m |
Water-proof | IP65 | Insulation Class | B |
Residual Magnefism | / | Duty Cycle | 50% |
Working Temperature | -10°C-100°C | Thread Size(mm) | M2 |
Thread Depth(mm) | 4 | Payment Term | TT,PAYPAL |
Sample Order | YES | Warranty | 1 YEAR |
MOQ | 2 pcs | Supply Ability | 5000 pcs per Week |
Delivery Time | 3 Days | Port of Loading | Zhongshan |
Weight | Packaging Details | Shipment Details | ||||
N.W.(KG) | G.W.(KG) | Product Size(mm) | Carton Box Size(mm) | 20GP | 40GP | 40HQ |
0.004 | 0.004 | 10*10 | 350*310*180 | / | / | / |
