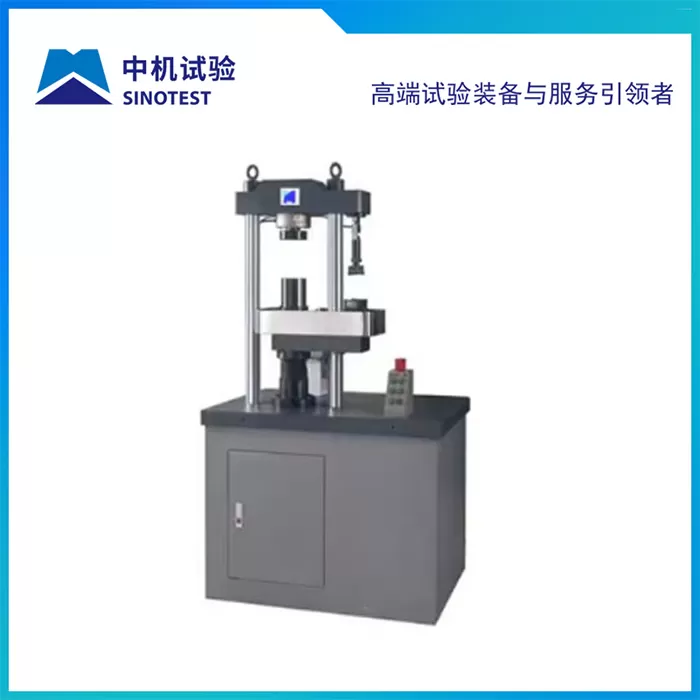

Introduction:Computer-controlled compressive and flexural integrated testing machine
The microcomputer-controlled compression and flexural testing machine is specially used to test the compressive strength of cement mortar materials. It fully meets the national standard GB/T17671 "Cement mortar strength test method", and also meets the test requirements of ISO, ASTM and other standards for cement mortar materials, serving the scientific research and teaching of major universities and research institutes.
1. Host type: two-column floor-standing type
2. Maximum test force: 300KN/5KN
3. Test force measurement range: 0.4%~100%FS
4. Test force measurement accuracy: display value ±0.5%
5. Force control rate adjustment range: 0.005~5% FS/s
6. Force control rate control accuracy: when the rate is less than 0.05%FS/s, it is better than the set value ±1%; when the rate is greater than 0.05%FS/s, it is better than the set value ±0.5%
7. Beam displacement resolution: 0.00005mm (0.044μm)
8. Beam displacement accuracy: ±0.5%
9. Beam speed range: 0.001~50mm/min
10. Beam speed accuracy: better than ±0.5%
