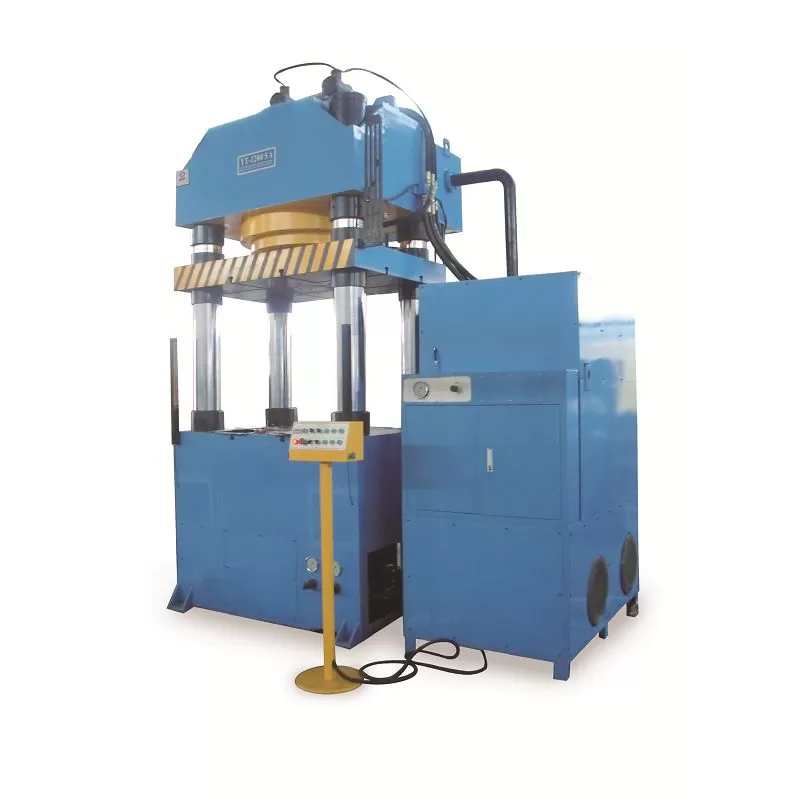

Cold Forging Hydraulic Press Machine

Introduction:The cold forging hydraulic press machine mainly applicable to metal materials of cold extrusion, forming、shallow、drawing and blanking purposes.

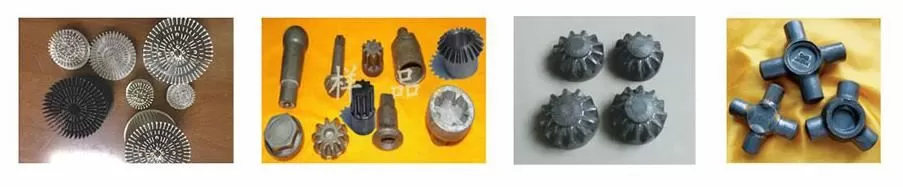

Cold Forging Hydraulic Press Machine Application

Primarily applicable to metallic materials of chilly extrusion, forming、shallow、drawing plus blanking purposes.

Like automobiles, motorcycle aftermarket, mobile phone housing, LED radiator, watchband, watchcase, hardware equipment, and so forth

Cold Forging Hydraulic Press Machine Technical Parameters

Model			YTF-100XA	YTF-150XA	YTF-200XA		YTF-300SA		YTF-500SA	YTF-650SA	YTF-800SA	YTF-1000SA
Main Cylinder	Nominal Pressure	ton	100	150	200	300		500		650	800	1000
	Return pressure	ton	10	10	20	20		30		30	40	50
	The max stroke	mm	200	200	250	250		300		300	400	400
Ejecting cylinder	Nominal Pressure	ton	10	10	20	20		30		30	40	50
	The max stroke	mm	100	100	120	120		150		150	150	150
	Ejector rod diameter	mm	30	30	40	40		50		60	60	80
The max open height		mm	500	500	600	700		800		800	900	900
Speed of working table	Upstream Speed	mm/s	150	150	160	160		170		150	150	150
	working speed	mm/s	8-16	12-24	16-32	12-24		10-20		8-16	8-16	8-16
	Downstream Speed	mm/s	150	150	150	150		170		150	150	150
Sizes of working table	L-R	mm	500	500	600	600		700		800	900	1000
Sizes of working table	F-B	mm	500	500	600	600		700		800	900	1000
Motor Power		kw	5.5	7.5	30	30		37		37	59	74

Features of Cold Forging Press Machine

Greater precision of most of the movable working endure and high rigidity in the click physique get this specific to click

Typically well suited regarding forming regarding or perhaps patch together with typically the irregular condition, likewise, to need regarding high accurate;

Several columns usually are manufactured from blend stainless steel with large tensile resistance in addition to finely grinded

A major hydraulic cylinder is usually made of blend cast steel in addition to its inner area is finely ground Machining;
