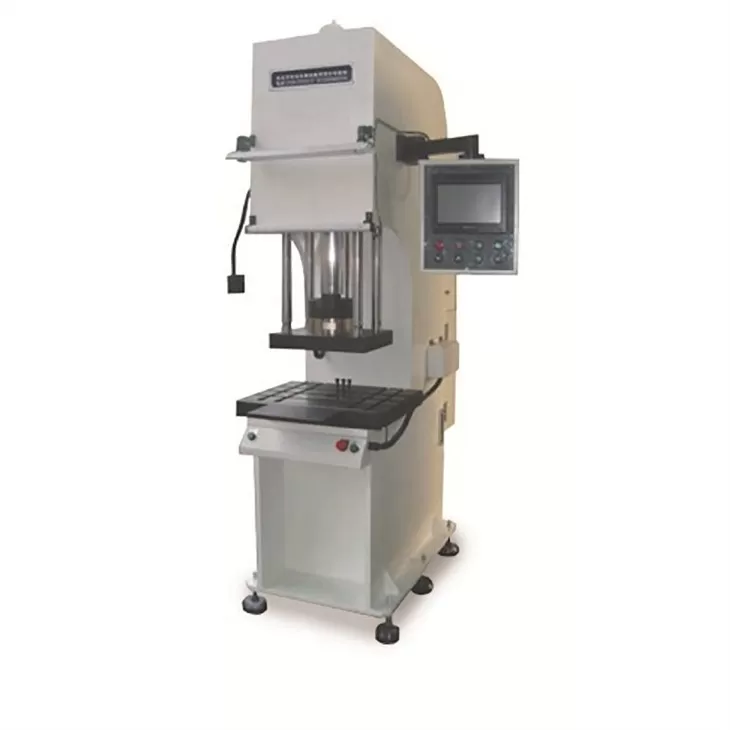

C Frame Hydraulic Press Machine

Introduction: The c frame hydraulic press machine is suitable for forming of eye-sight parts, lock elements, metal hardware demanding, assembly of electric connectors, electric pieces, and rotor as well as the stator of the electric motor, etc.

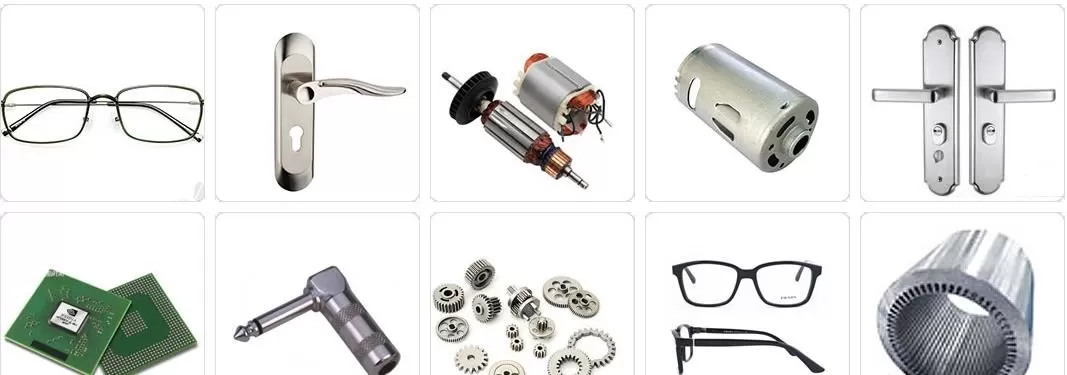

C Frame Hydraulic Press Machine Application

1.Stamping, forming, short drawing and demanding assembly, etc.

2. Forming of eye-sight parts, lock elements, metal hardware demanding, assembly of electric connectors, electric pieces, and rotor as well as the stator of the electric motor, etc.

Technical Specification of C Frame Hydraulic Press Machine

Model		Units	Specifications
Model		Units	YTC-10	YTC-25	YTC-35	YTC-50	YTC-80	YTC-100	YTC-200
Cylinder capacity		Ton	10	25	35	50	80	100	200
System pressure		MPA	13	13	15	16	21	24	24
Stroke		mm	200	200	250	300	300	300	350
Open height		mm	400	400	400	550	550	550	550
Throat depth		mm	175	175	200	300	325	325	375
Down speed		mm/s	200	200	200	200	200	200	200
Working speed		mm/s	30	20	20	20	20	18	18
Return speed		mm/s	200	200	180	180	180	180	180
Upper slide size	L-R	mm	350	350	400	440	520	520	800
Upper slide size	F-B	mm	180	180	300	340	400	400	600
Working table size	L-R	mm	450	450	500	700	800	950	1300
Working table size	F-B	mm	350	350	350	600	650	650	700
Working table height		mm	850	850	850	850	900	900	1000
Machine Size	L-R	mm	610	620	680	720	1050	1150	1300
	F-B		940	1080	1150	1500	1750	1850	1900
	H		1880	2040	2050	2300	2560	2560	3100
Motor Power		KW	3	4	4	7.5	11	15	22

Major Features of C Frame Hydraulic Press Machine

1. Energy-saving also emission reduction: Hydraulic and electronic handle uses the intelligent servo-saving system, saving 50-70%

2. Safety plus Precision: Each gadget possesses an infrared security grating, which generally effectively protects the particular safety from your owner. The domestic smart patented manage program ensures that will the specific machine’s replicate placement accuracy will be upward to ± 0. 03mm because well as the particular stress precision will be ± 1 pub.

3. Low failing price: Servo smart evident control program, perform not ineffective function, the essential oil heat is not really simple to boost, and presently there is no undesirable pressure in the particular oil program, the higher reduction connected with a failure, extend the particular lifespan associated with hydraulic components, electric home appliances with automated problem alarm functionality plus one-button totally reset function.

4. Continuous and sturdy: The particular specific frame retreats into the particular specific frame framework through the whole machine, very well as the slider adopts accuracy guide rails to operate. It is proof of shock plus component pressure, plus the particular whole gadget is going to be stable, particular plus durable. This particular really is perfect for blanking, forming, extrusion plus other process utilizes.
