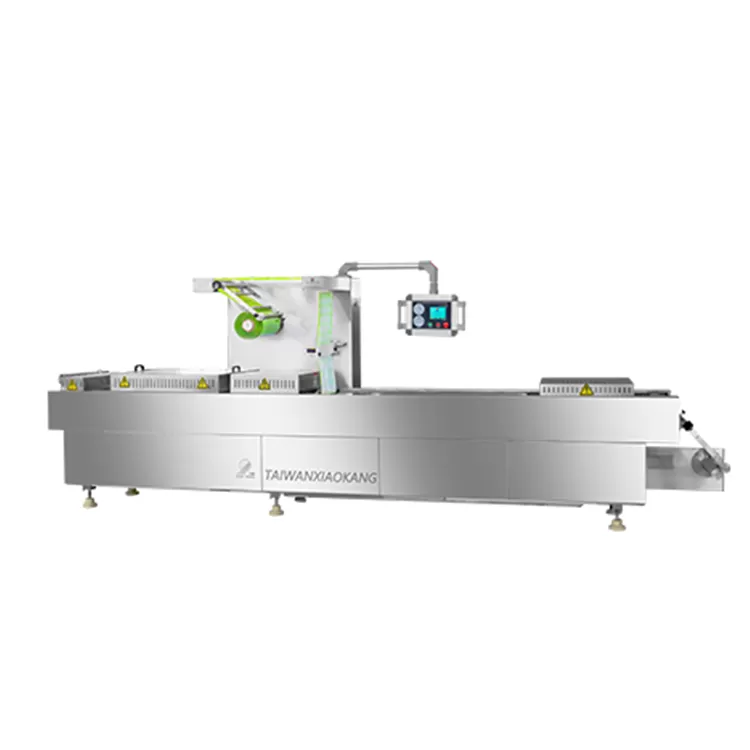

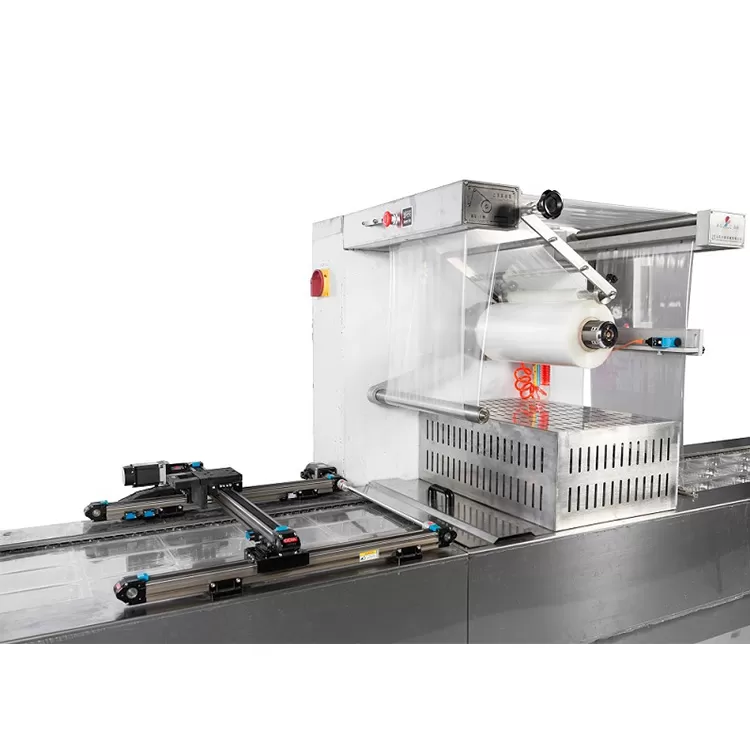

Thermoforming Vacuum Packaging Machine

Introduction:Thermoforming Vacuum Packaging Machine

Product Description

Model	DLZ-520	DLZ-420	DLZ-320
Film type	Flexible film,Rigid film, Aluminium multi-layer film, Skin film	Flexible film,Rigid film, Aluminium multi-layer film, Skin film	Flexible film
Output	Large	Middle	Small
Upper film width	494-495mm	393-394mm	293-294mm
Lower film width	522mm	422mm	322mm
Vacuum degree	≤200Pa	≤200Pa	≤200Pa
Cooling water	≥0.15Mpa	≥0.15Mpa	≥0.15Mpa
Compressed air	≥0.6Mpa	≥0.6Mpa	≥0.6Mpa
Power	380V/50HZ,3phase	380V,50Hz,3phase	380V,50Hz,3phase
Total power consumption	16-22KW	14-18KW	8-12KW
Overall dimension	6500×1050×1860mm	6300×950×1860mm	4300×850×1860mm
Remarks: Above machine dimension is standard size, actual size can be custom made according to your requirement.

Configuration:
> Thermoforming vacuum packaging machines is individually designed to the customer's requirement.

> High-performance thermoforming packaging machines from XIAOKANG.
> Hygienic Design, all the machine adopt superior SUS304steel,
> Compact structure :High strength, good straightness, not easy to deform.
> Patented design
> Easy access,Easily removable panelling
> Safety design
