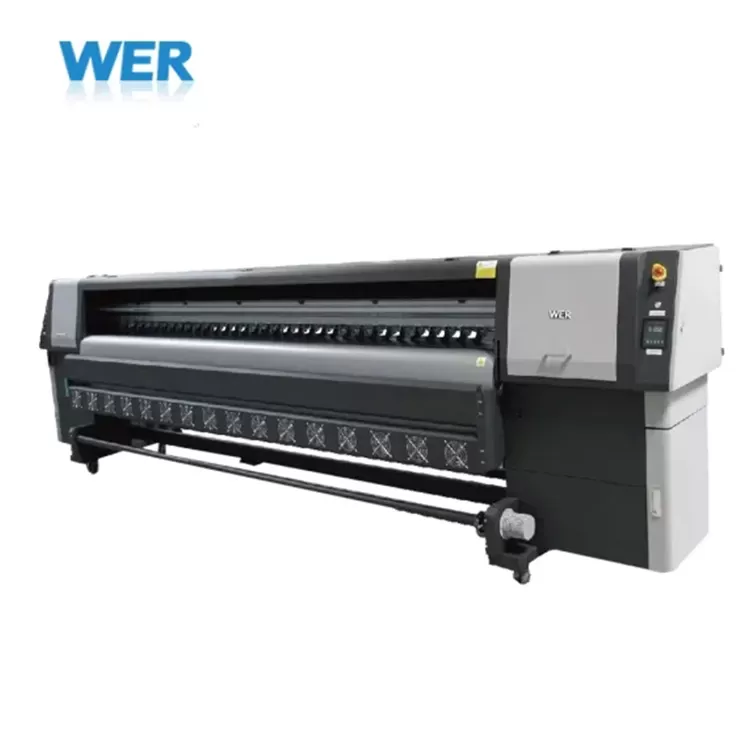

Large Format Solvent Printer

Introduction: Large Format Solvent Printer

Product Description

Model		WER-K3204I		WER-K3208I
Print head	KM512i-30pl	4heads		8heads
Printing speed	2pass	480x360dpi	130m2/h	480x360dpi	260m2/h
	3pass	480x1080dpi	90m2/h	480x1080dpi	180m2/h
	6pass	720x720dpi	45m2/h	720x720dpi	90m2/h
	8pass	720x1440dpi	35m2/h	720x1440dpi	70m2/h
Head hight	1-10mm
Maximium printng size	3200mm
Color	4 colors(C,M,Y,K)
Ink	Solvent ink
Material	PVC vinyl, flex banner, carpet paper, PVC mesh fabric, perforated vinyl, cloth banner etc.
Max thickness of material	1-10mm
Print thickness	1-2mm
Media handle	Roll to Roll
Feed up method	Automatic feeding
Heater system	Three section heating+infrared+fan

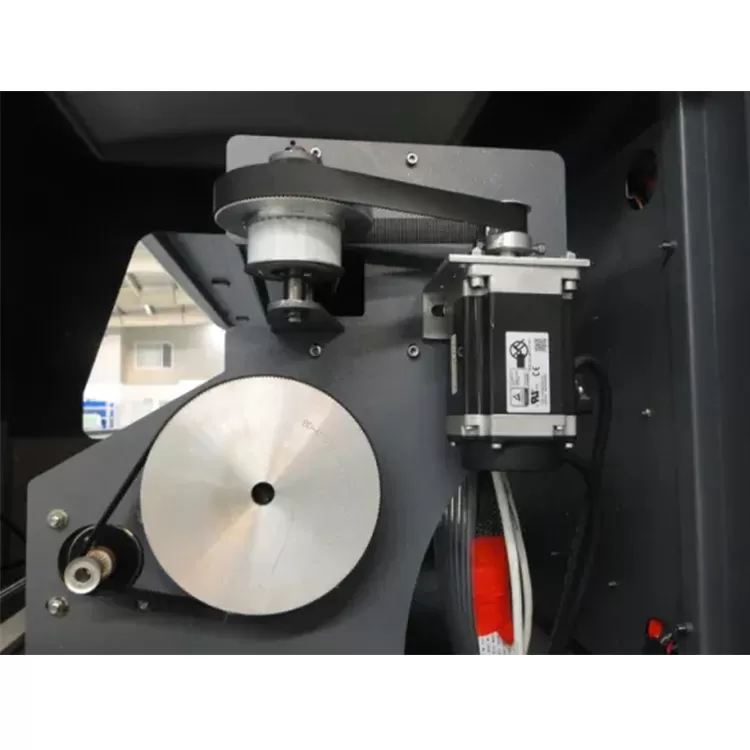

Motor	Panasonic motor
Linear rail	THK linear mute guider
Operating System	Windows7/Windows8/Windows XP
Supporting Format	PSD/EPS/TIFF/JPG/DWG/HPG/HGL ETC
Computer configuration	i7/8G/1TB/USB3.0
RIP Software	Maintop/Ultraprint/Photoprint
Print language	Standard printer languages
Power supply	AC220±10%,Single Phase ,50/60Hz
Environment	Temperature:20-28°C Humidiy:45-75%RH
Packing material	Wooden sase, No fumigation
The Size of the Machine	48059801440mm/850kgs
The Size of the Package	495010701630mm/950kgs
Warranty	1 Year
Certificate	ISO90001:2000 & CE
Delivery time	Make the delivery in 7 days after receiving the earnest money

Equiped with Konica 512I Printhead wiht good quality.
Temperature control system offer easy & convenient operation
The double direction & step can be adjusted during printing process without stop.
Equipped with individual ink purge & cleaning function,3 direction valve ensure easy operation & comparatively less ink consumption.
Imported linear rail guider gurantee the precise running of printer.
Fans and infrared heater to make printing production dry sooner than before and more safety operation.

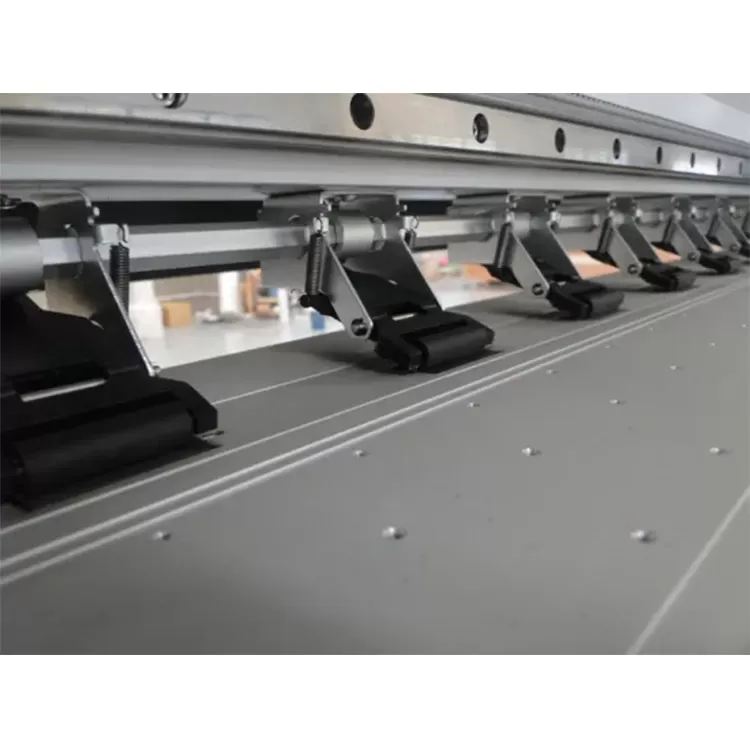

Feeding material system, roll to roll feeding system is suitable for flex banner, pvc vinyl, one way vision and other heavy or light roll material. Different material type have different feeding system.
Taking up material system with fast speed.
LED light is fitting for night works.

High Performance-Price Ratio

Perfect printing width design

To meet the demand of large format solvent media and industrial use,WER has developed this this Polaris series solvent printer which has 3.2m and 5.3m in width.And also the printing stable performance goes up to a new level.
