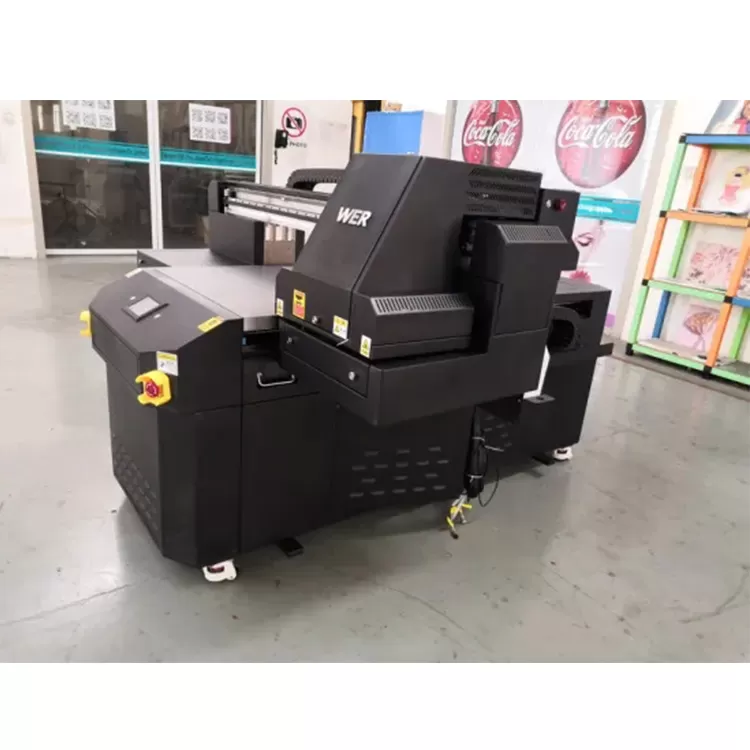

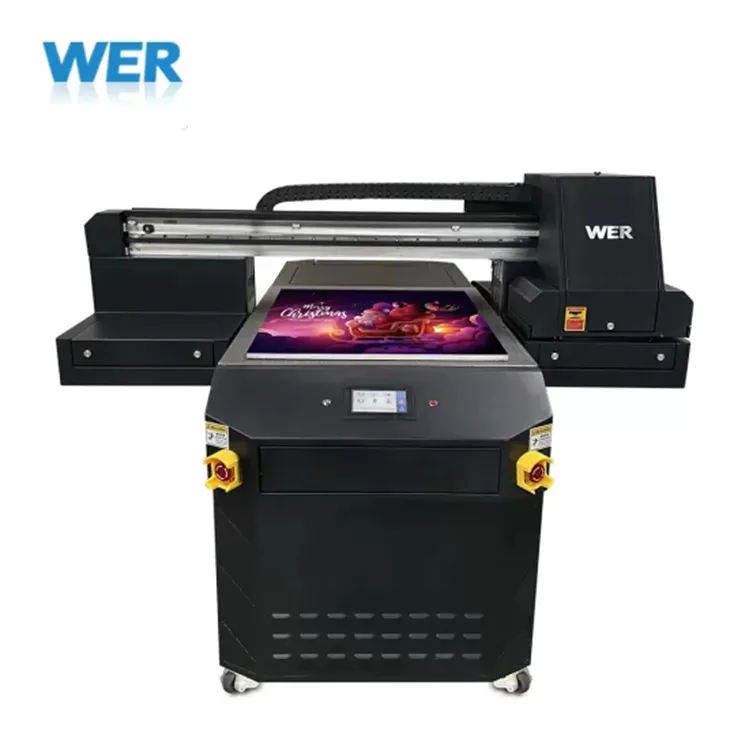

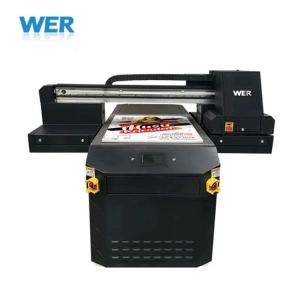

Introduction:Flatbed Printer for Glass
Product Description
| Model | WER-ET6090UV |
| Printing size | 700mm*1000mm |
| Print head | 3PCS TX800(DX10) Print head(2pcs DX5&DX7 option) |
| Printing thickness | 0~160mm |
| Nozzles | 180 nozzles*6 lines per head |
| Ink type | UV LED curing ink |
| Color number | CMYK W & Varnish, print color and white in one pass |
| Printing interface | USB 3.0 high speed interface & 100 Base-T Ethernet interface |
| Printing Direction | Smart Bi-directional Printing Mode |
| Printing method | Drop on Demand (non-contact micro piezoelectric ink-jet printing technology) |
| Applicable industry | Rigid PVC board, glass, plastic, organic board, leather, rubber, special paper, metal, wood, porcelain, PVC, ABS, acrylic, aluminum, iron sheet, ceramic tile, marble, granite, paperboard, etc. |
| Preprocessing of the printing material | Specialized coating (no-coating ink can be used directly) |
| Printing method | Drop on Demand (non-contact micro piezoelectric ink-jet printing technology; micro piezoelectric printing technology; VSDT; intelligent nozzle clogging sensor system). 180nozzle/color*8; VSDT |
| Vacuum suction platform | Equipped |
| Printing speed for A1 size | Production mode :6.8 m²/H (720*720dpi, 8pass) |
| Standard mode : 4.3 m²/H (360*1440dpi, 12pass) | |
| Ultra quality mode :3.4 m²/H (720*1440dpi, 16pass) | |
| Height detection of printing material | Infrared sensor |
| Power consumption | 136 W/ Hour |
| Ink consumption | 10 ML/SQM |
| Ink capacity | 500ml,automatic ink volume monitoring, add ink no need to stop machine |
| Lamp type | LED Lamp (saving energy and environmental friendly) |
| Auto adjustment function | Nozzle automatic detection; print head automatic |
| Height adjustment | Auto |
| Normal working environment | Temperature 10-35Celsius Humidity 20-80RH |
| Power/ Voltage | 2.5KW /50Hz/60Hz, 110V, 220V(±10%)>10A |
| Operation system | Maintop for Windows 7. 8.10 |
| Support Image format | FIFF,JPEG,EPS,PDF, etc. |
| Machine configuration | USB line; driving software; power line; instruction book; washing and ink-joiner tools |
| Special remarks | Customized service is available. |
| Machine size/Net weight | 1800*1620*1180mm/380kgs |
| Packing size/Gross weight | 2160*1760*1530m/480kgs |
FAQ
1. What materials this printer can print on?
POP board, KT board, Acrylic, organic glass etc. The UV printing reduce much work and trouble like lamination, fading, blistering, and save much working hours. Rigid signs board, hard carton or corrugated paper box, special market(like customize and decoration market): glasses, ceramic tiles, wood, even furniture.
2.What is the printer production capacity / printing speed?
Single head uv printer is 120 sec. For A4 size, dual heads uv printer is 60 sec. For A4 size
3.How much will cost for printing one square meters?
We can calculate the cost according to the price of ink, kindly note the ink consumption is about 15ML/M2.
4.How to move the machines?
UV printers belong to precise instrument, when you move them, please turn off all power, remove the cartridges and waste cartridge, keep other parts on the printer, and handle with care, keep shaking and heavy goods away from the printer.
5.How to make 3D effect texture.
Can through two ways to reach 3D feeling: One is change media, by engrave to reach embossed feeling, then print by WER printers, second is through WER 3D printing technology, to accumulate UV ink to reach 3D effect. The 3D range will be bigger when use first ways; the second way have the height limit, and this way can re-print to reach more 3D effect, e.g. Mountain, use the second way can reach more Layering.
