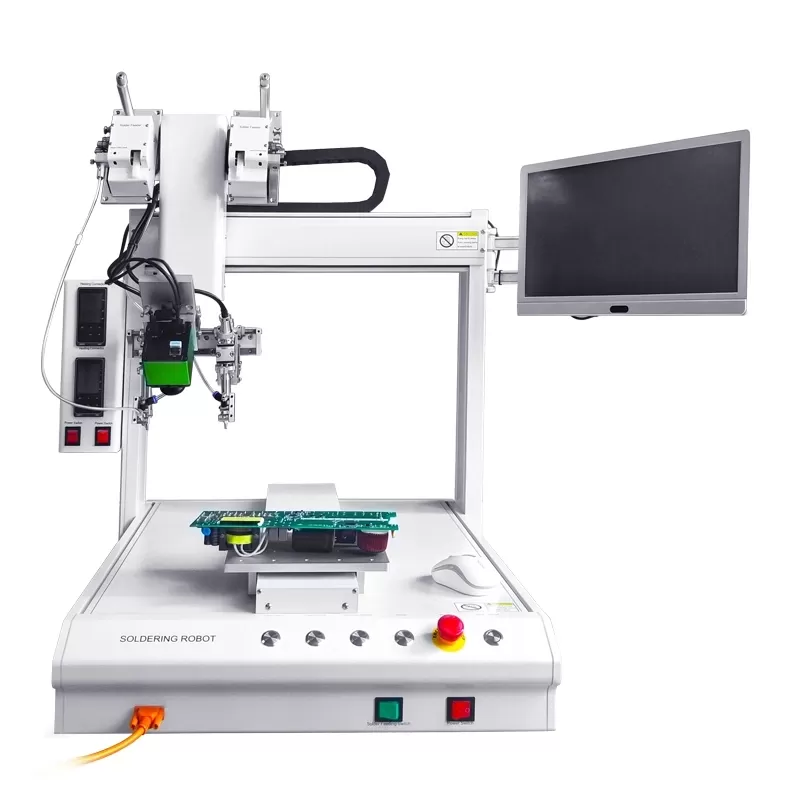

Soldering Robot

Product Description

• The heating system adapts Weller/Apollo Seiko heating and soldering tip.
• Saves 30% of the solder consumption comparing with manual soldering.
• Applicable for different products, soldering temperature can be set freely.

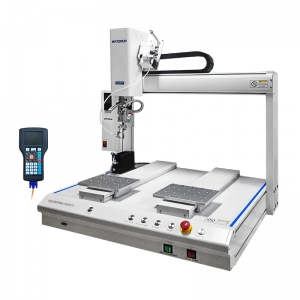

• With the handheld LCD Teaching Pendant, the programming is simple and easy to learn.
• The soldering tip has rapid heat recovery and a long life span.
• Flexible and diverse soldering method,with spot welding,drag welding;

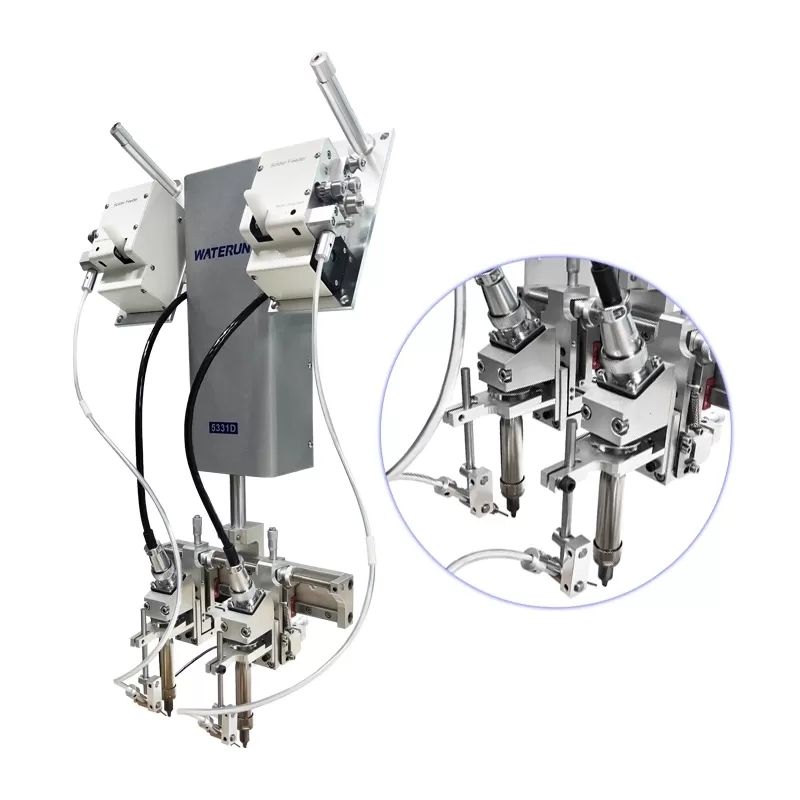

• Double Y Axis can achieve higher efficiency and more convenient operation;
• The welding point track is visible,which is convenient for the operator to understand the progress of the solder and facilitate the debugging of the engineering staff.

Aluminum alloy soldering robot
Model		S513	S514	S5331R	S5331D	S6441R	S661R
Axis Range	X	400mm	400mm	500mm	500mm	600mm	600mm
	Y-1	400mm	400mm	300mm	300mm	400mm	600mm
	Y-2			300mm	300mm	400mm
	Z	100mm	100mm	100mm	100mm	100mm	100mm
	R	360°	360°	360°		360°	360°
Dimension (mm)	L	720	720	820	820	920	920
	W	700	700	600	600	700	810
	H	810	810	800	800	810	810
	KG	60	60	65	65	90	95
Power Source		220/110V 50Hz (Please specify)
Motor		Stepper Motor (Please specify if you need servo motor)
Precision		+-0.05mm
Control System		4-axis control system / 5 axis control system
Preheating Temperature Range		0 ~ 500 degrees
Cleaning		Air blowing / brush
Program Capacity		999files, each file can save up to 999 points
		220/110V 50Hz (Please specify)

FAQ

1. Are you the manufacturer?
Yes, our factories located in Shenzhen and Dongguan. We can offer OEM and ODM services..
2. What's your MOQ?
We have no MOQ for this item, we can customize for one piece order according your requirment.
3. What's your payment terms?
Normally we can work on T/T ,VISA ,Mastercard ,West Union, Paypal.
4. Your products have certificates?
Most our products are complied with CE.
5. How to make an order? What's the lead time?
Our standard machines takes 7-15 days, Customized Item takes about 20-30 days..
6. Can I visit your factory before order?
Yes, welcome to visit our factory. About 30~60 mins from Shenzhen Airport.
7. Can you provide sample before a regular order?
Sure, we accept sample order.
