Introduction:Automatic Glue Dispensing Machine AB glue
Products Description
Products Description

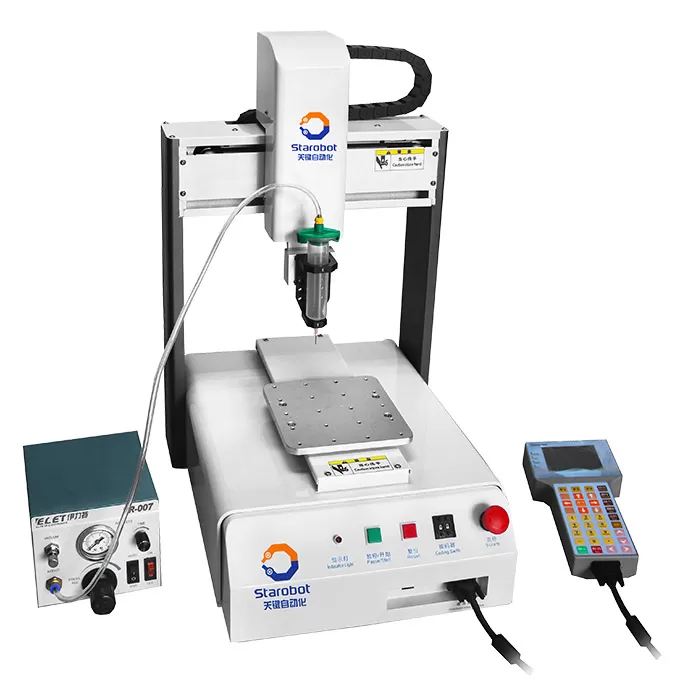

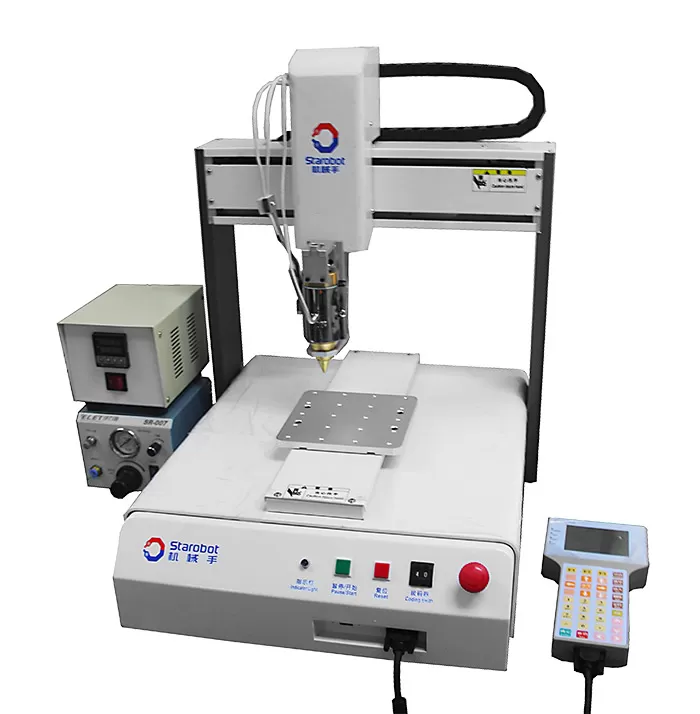

Waterun DJ-200P Automatic Glue Dispenser robot
Features:
1,Operation with handheld LCD panel teach box, which is easy to program and learn.
2,Functions of drawing points, lines, surfaces, arc, circle and consecutive interpolation of irregular curves, is to realize any 3D non planar trajectory path.
3,Excellent teaching function, Supporting: array, graphical browsing three dimensional elliptic, common graphical library inserting, group editing and so on..
4,The size of glue, speed of glue spread, dispensing time, and time of halting dispensing can be set by parameters.
5,With special dispensing controller, glue outflow is quite stable without leaking and dripping.
Suitable glue:
It is applied to fluid dispensing, such as, UV glue, AB glue,COB(black glue), white glue, EMI conductive glue, silicon, epoxy resin, instant glue, silver glue, red glue, paste, thermal grease, welding control paste,transparent paint, screw fixative and so on.
Packaging & Shipping:
Strong wooden cases suitable for a long distance shipment.
package weight :about 78kg
package size: about 400(L)*450(W)*650(H) mm
Model | Waterun DJ-200P |
Voltage | 220V AC |
Size | 380L)*440(W)*630(H)mm |
Movement pattern | 3 axis point to point,continuous line, arc |
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer small value sample for free charge but do not pay the cost of freight.
