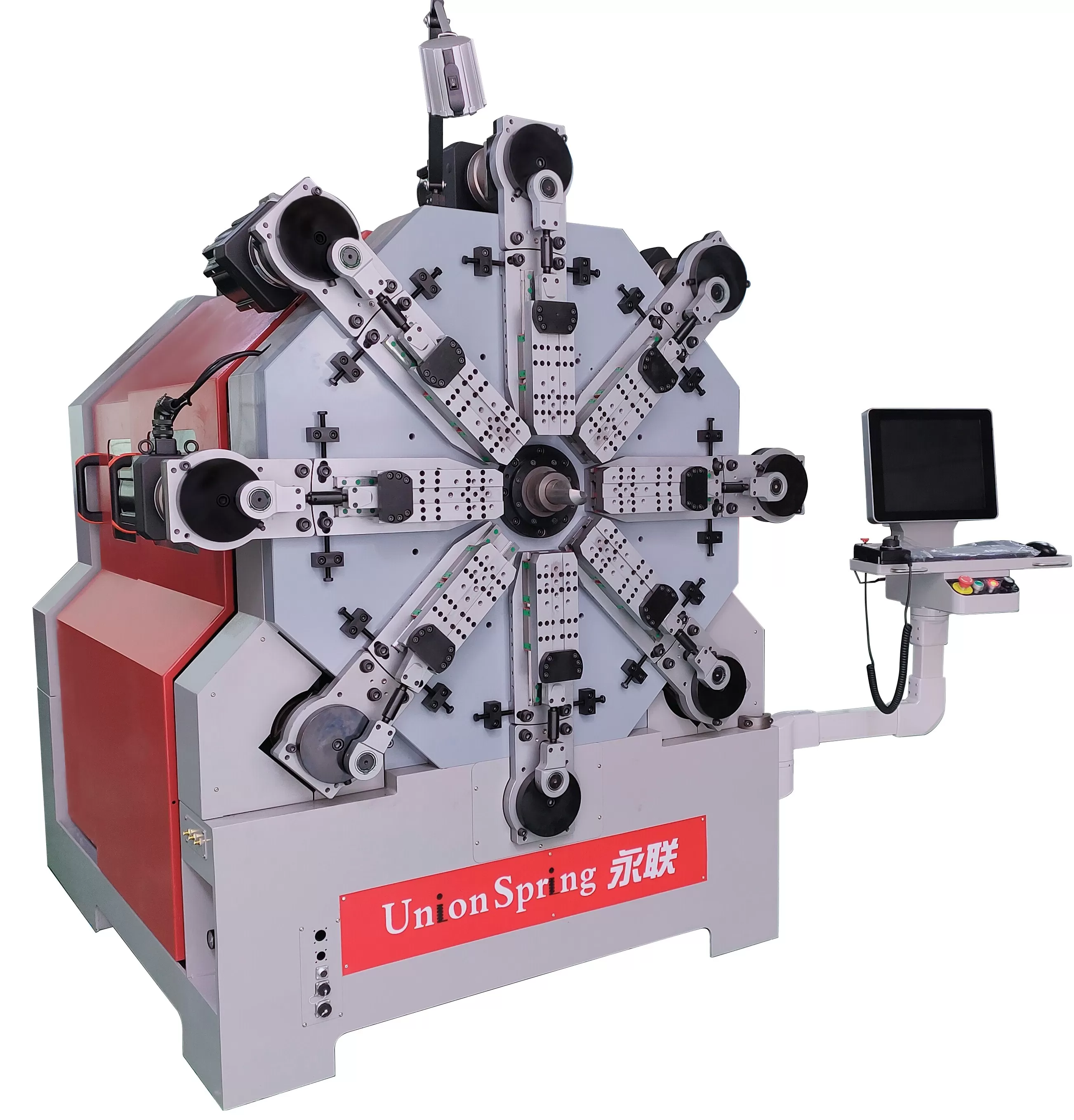

Introduction:2.0-6.0mm Camless Wire Rotary Spring Machine
2.0-6.0mm Camless Wire Rotary Spring Machine Advantages
1. The machine adopts unique camless and rockerless design, which reduces the technical requirements for machine adjustment and significantly reduces the time for machine adjustment.
2. Japan imported Sanyo motor and precision bearing parts, to improve the accuracy of action, to ensure stable operation, durable and effective extension of the service life of the machine.
3. Intelligent professional-grade industrial computer operating system, easy to understand and operate the operating interface, powerful enough to meet the requirements of complex multi-tasking.
4、Operating system protection device, wire feeder disconnection alarm, safety door protection mechanism, providing all-round protection for the operator and the machine.
Technical Parameter Of 2.0-6.0mm Camless Wire Rotary Spring Machine
| Model | US-1260R |
| Axis | 12 |
| Wire Diameter | 2.5-6.0mm |
| Wire Wheel Sets | 3 Sets |
| Slide Axis | 4.5KW*8 |
| Wire Feeding Axis | 7.5KW |
| 5Rotary Wire Axis | 4.5KW |
| Rotary Quill Axis | 2.0KW |
| Spinner Axis | 2.0KW |
| Machine Size | 2200*1930*1950mm3 |
| Machine Weight | 4000KG |

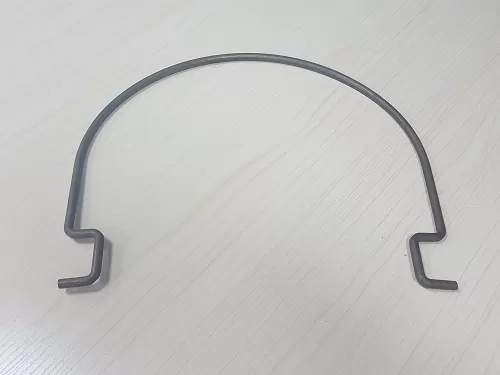

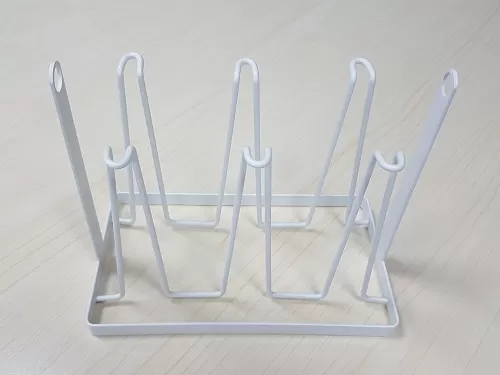

Production drawing Of 2.0-6.0mm Camless Wire Rotary Spring Machine
