Introduction:High Precision 2d Measurement 2.5d Image Measuring Instrument For Dimension
High Precision 2d Measurement 2.5d Image Measuring Instrument For Dimension
| Work Stage Material: | Aluminum | Motion Control: | Z Axis Motorized With Software/keyboard/MPG Control |
|---|---|---|---|
| Measuring Resolution: | 0.1um | Measuring Accuracy: | 2.5+L/200 |
| Camera: | HD Camera 1.2M Pixel | Working Distance: | 108mm |
| High Light: | vision measuring machine | ||

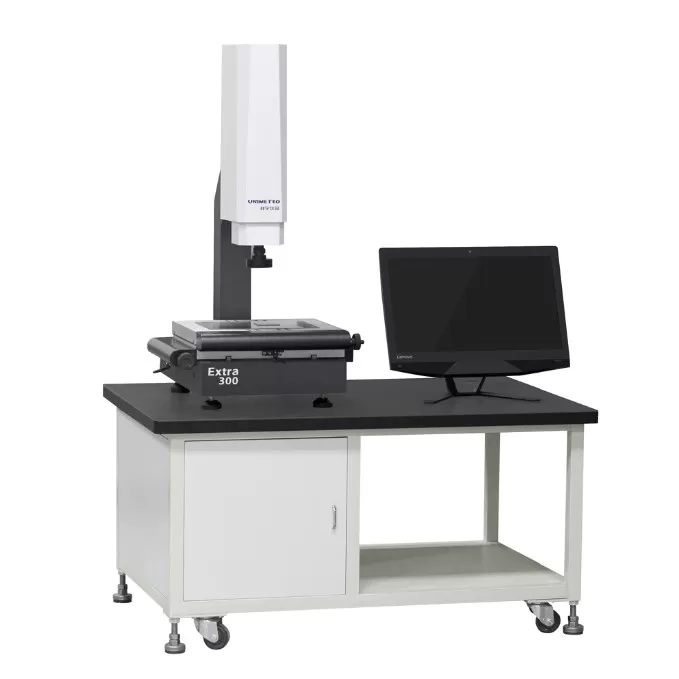

EXTRA Semi-Auto Manual Vision Measurement Machine
Product Description
The EXTRA series Semi-Auto vision measurement machine provides extra measuring function and user experience to customers over normal vision measuring products. We use light weight design on the machine frame, makes the structure more slim, but keep the high rigidity and stability, allows the users to get the max measuring range in smallest space.
The EXTRA series is using high accuracy linear slide way, which is totally different from the cross slide way used for other manual VMM, ensures much more stable and accurate transmitting of the work stage, also voiding the potential risk of the shorten travelling range which cost by the cross slide way. Working with the UNIMETRO professional 3D measuring software, the EXTRA series VMM will provides strong 3D measuring function, which becomes a powerful 2D/3D composite measuring device with extremely reasonable price.
