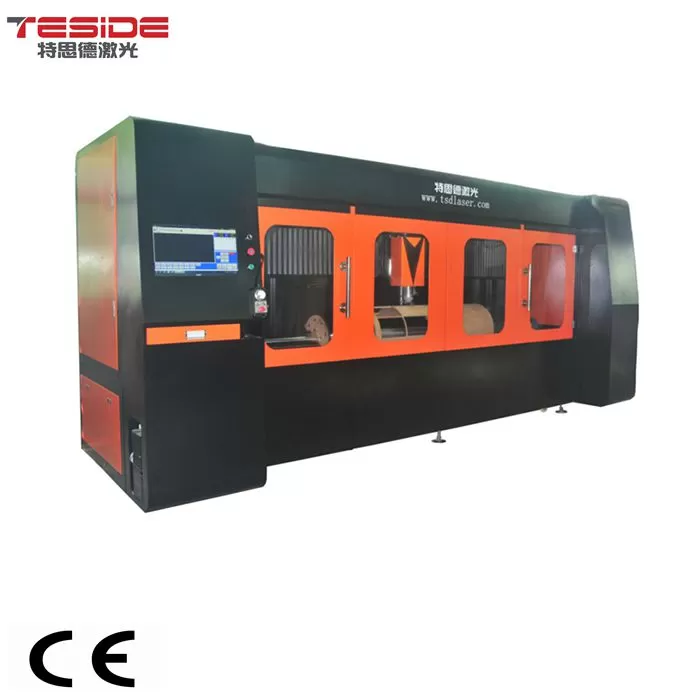

Introduction:China Manufacturer of CNC Rotary Cutting Machine for Rotary Dies
Technical Specifications
Model No.: | TSD-RC300 |
Cutting Length: | 3000MM |
Cutting Dia.: | 200MM-800MM |
Cutting Width: | 1.42MM |
Positioning Accuracy: | 0.1MM |
Cutting Speed: | 20-25Meters/hour for 13mm thickness rotary board |
Machine Weight: | 2500kgs |
Machine Electricity: | 380V 50Hz/60Hz 3Phase |
Cooling system: | CW-3000 Chiller to cooling main motor |
Machine Overall Dimension: | L4800 x W1300 x H2000mm |
Gas | Air compressor supported to blow dusty, no need air dryer |
Numerical control panel | LCD screen, light-touched key-press computer |
Software supported | Auto CAD drawing |
Graphic format support | AUTO CAD DXF file |
EMS memory | attached 32MB memory, can work under off-line condition |
Knife Matching | Original 50pieces |
Assistant equipment | CW-3000 Chiller, and air compressor |
Recommend spare parts | Knife |
H.S Code | 8441100000 |
Performance
1. High rigidity machine bed with annealing process to ensure the accuracy of the machine, to be stable for a long time.
2. Fully closed design, isolation of dust, no pollution.
Advantage
1. Low cost machine, quickly to return investment;
2. Low consumption cost, two degrees of electricity per hour only;
3. Low maintenance cost, milling cutter consumption only;
4. Small installation space needed only 4.8M length by 1.5M width;
5. Working environmental protection, No laser cutting smoke;
6. Fully automatically drilling cut the installation hole, one-time to complete the rotary die cutting process.
