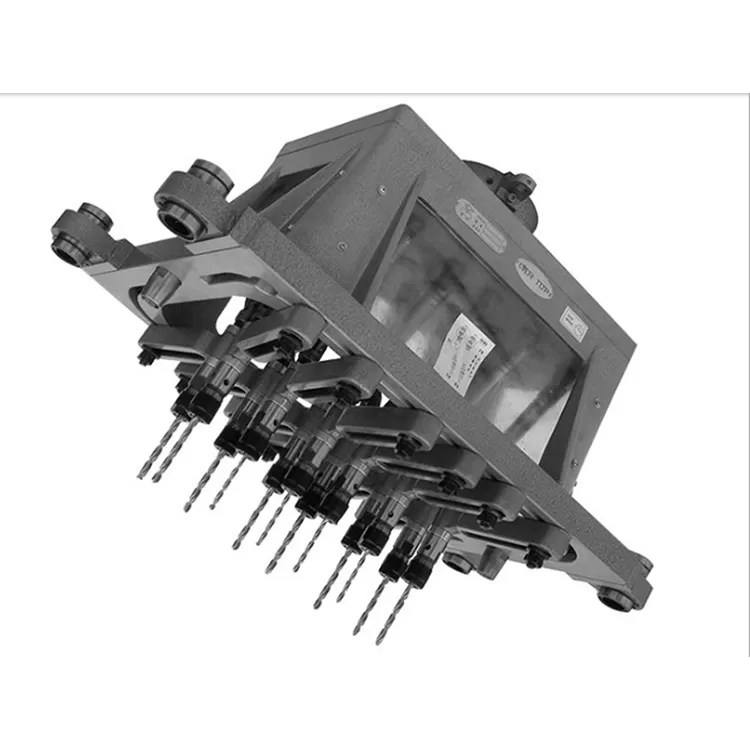

U-shaped square multi-axis device

This series of multi-axis machines are used for medium-cutting and has strong versatility. It is suitable for the occasions where the workpiece has a large batch and the accuracy of the hole diameter and hole distance is not very high;

*This series of multi-axis device is composed of a gear box and a universal joint, which is easy to adjust, and the processing hole distance is not limited by the gear, which saves adjustment time and has few dead angle restrictions. It is suitable for processing the hole system that is close to the rectangle. The adjustable multi-axis device is a specification that is easy to operate and use.

*In order to ensure the service life of the universal joint, the moving range shall not exceed 15 degrees (that is, within 30mm of the front, rear, left, and right of the output shaft when the output shaft is vertical). To coordinate the hole distance coordinates of the work, the hole of the driven gear can be boring when designing the gear box structure. Bit. When working, lubricating grease should be added to the universal joint frequently to extend the service life of the universal joint.
