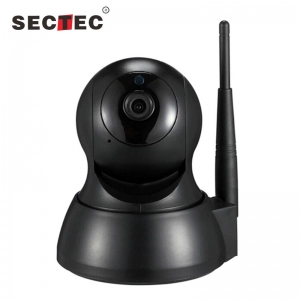

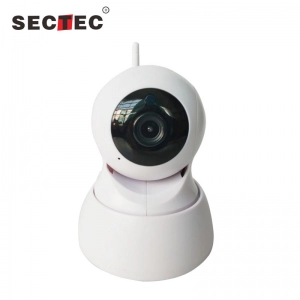

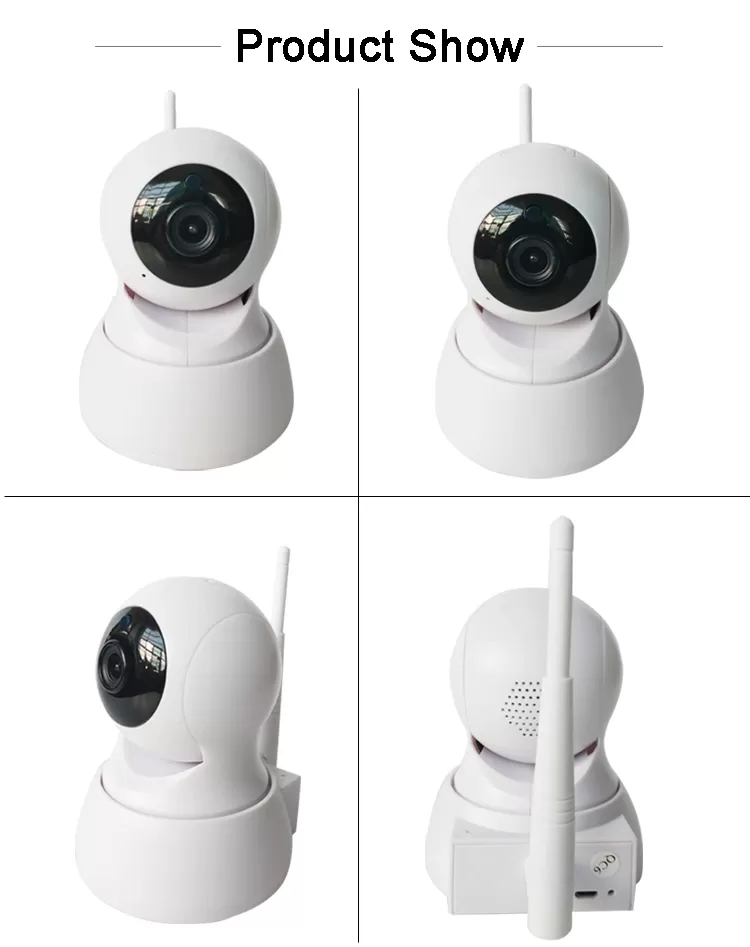

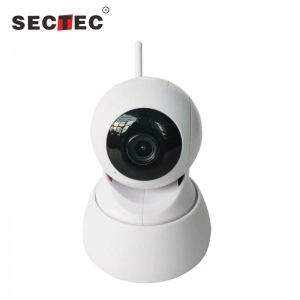

Introduction:CCTV IP Camera
Product Description
Specification:
High resolution,image clear and exquisite
Use the advanced H.264 High Profile compression technology,which can be the lowest code rate and HD image quality
Low illumination,0.1Lux@(F1.2 , AGC ON),0 Lux with IR On
Support dual-stream,support Micro SD storage(optional)
Support Mobile view(iPhone,Android,Windows Mobile, BlackBerry, Symbian)
Support the view by browser(IE,Chrome,Firefox,Safari)
Support auto IR-CUT filter removal function/ICR,can be monitoring day and night
Support butt join with HVR/NVR,support ONVIF
Support Cloud,P2P,WIFI
With the WEB,CMS management software,can provide the SDK for secondary development
| Model | ST-HIP327-1M-JZ | |
| Image Sensor | Image Sensor | 1/4" HD 1Megapixel Cmos sensor |
| Display Resolution | 1MP, 1280 x 720(720P), 640 x 480(VGA), 320 x 240(QVGA) | |
| Lens | 3. 6mm | |
| Min. Illumination | Low illumination,0.1Lux@(F1.2 , AGC ON),0 Lux with IR On | |
| Audio | Input/Output | Built in Microphone, 3.5mm audio Jack output |
| Audio Compression | G.711, ADPCM/32kbps | |
| Video | Image Compression | H.264 |
| Light Frequency | 50Hz, 60Hz | |
| Image Resolution | 720p(1280*720),D1(704*480),CIF(352*240) | |
| Image frame rate | 1~25fps | |
| View | H.264 dual streaming | |
| Image adjust | The brightness, contrast, saturation, chromaticity, is adjustable | |
| White balance | Automatic, Indoor, outdoor , is adjustable | |
| Infrared mode | Automatic , manual (on/off) | |
| Night visibility | 6x5EA 6 IR LEDs, Night visibility up to 60 metres | |
| Network | Ethernet | One 10/100Mbps RJ-45 |
| Supported Protocol | TCP/IP,UDP/IP,HTTP,SMTP,FTP,DHCP,DDNS,UPNP | |
| Wireless Standard | WIFI(IEEE802.11b/g/n) | |
| Data Rate | 802.11b: 11Mbps(Max.) 802.11g: 54Mbps(Max.) | |
| 802.11n: 150Mbps(Max.) | ||
| Support IP address | static IP address, dynamic IP address | |
| Alarm | Alarm detection | Motion detection, email alert, FTP upload |
| Alarm inform | Support Email,FTP etc alarm inform way | |
| Hardware Interface | Memory | Micro SD CARD (Support to 32G) |
| POWER Interface | DC 5V/2.0A (EU,US,UK adapter or other types optional) , | |
| Power Consumption <8 Watts | ||
| Audio Input/Output | Built in audio input, One audio output jack. | |
| Reset Buttons | One Reset | |
| Wireless Interface | WIFI antenna | |
| Other | Pan/Tilt Angle | Horizontal:355° & Vertical: 90° |
| Environment | Operate Temp | -20° ~ 55°C (32°F ~ 131°F) |
| Operate Humidity | 10% ~ 80% non-condensing | |
| Storage Temp | -20°C ~ 60°C(14°F ~ 140°F) | |
| Storage Humidity | 0% ~ 90% non-condensing | |
| Certification | CE FCC ROHS ISO9001:2008 | |
| Warranty | Limited 2 years warranty | |
FAQ
Q: How long is the warranty?
A: 2 -years-warranty since delivered out.
Q: What's the MOQ?
A: 1pc for sample, at least 10pcs after sample order.
Q: How long is the delivery time?
A: Sample order 3-5 working days, bulk order 7-15 working days.
Q: Why do you choose us?
A: Choose SECTEC Co., Ltd; Choose a qualified CCTV Products manufacturer!
We will try our best to find the products you need, we will provide you with the most satisfactory service. If you want to learn more, You can contact us. We also welcome you to visit our factory in Shenzhen.
