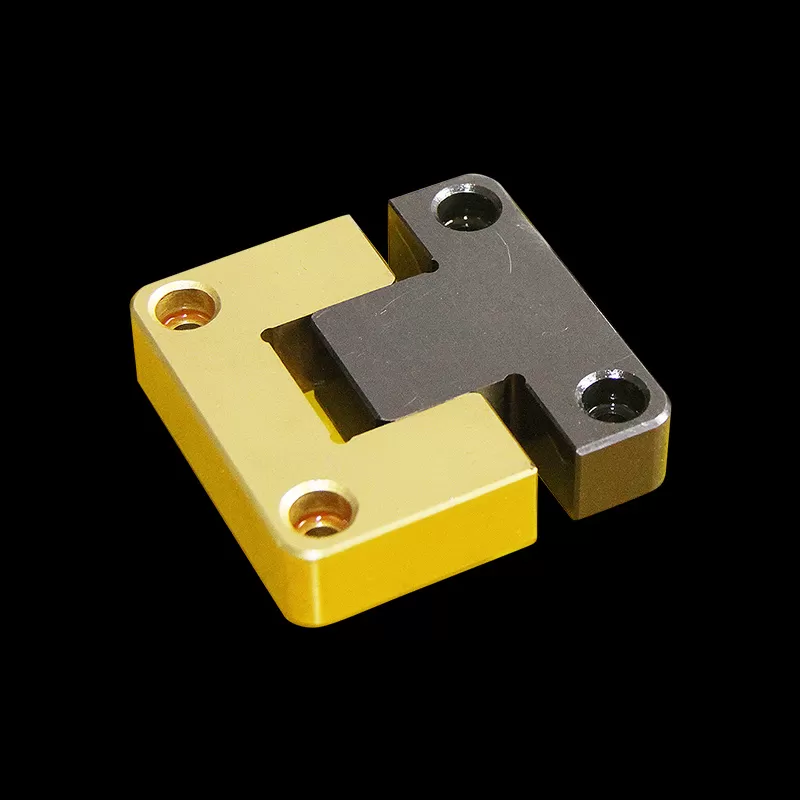

Square Inserts

Introduction:Square Inserts

Product Details

Code No	T	W	A	B	C	D	H	R	S1/S2	Z	SHCS
BGSx100	0.375	1	1.125	0.875	0.53	0.5	2	0.187	0.25	0.015	#10-32x1/2"
BGSx125	0.49	1.25	1.125	0.875	0.66	0.5	2	0.187	0.025	0.03	#8-32x5/8"
BGSx150	0.5	1.5	0.875	0.875	0.56	0.563	1.75	0.187	0.025	0.03	#8-32x5/8"
BGSx200	0.5	2	1.375	0.875	0.66	0.75	2.25	0.187	0.312	0.03	#10-32x5/8"
BGSx300	0.75	3	1.875	0.875	1.13	1.25	2.75	0.25	0.375	0.03	1/4-20x3/4"
BGSx400	1	4	2.375	1.375	1.25	1.5	3.75	0.5	0.5	0.03	3/8-16x1"
BGSx500	1. 25	5	2.875	1.375	1.63	2	4.25	0.5	0.625	0.03	1/2-13x1-1/4"
BGSx600	1.5	6	2.875	1.375	1.75	2.5	4.25	0.5	0.625	0.03	1/2-13x1-1/2"

METRIC STANDARD

Note:All dimensions and tolerances are in millimeters.

Code No	T	W	A	B	C	D	H	R	S1	S2	Z	SHCS
BGSMx50	16	50	21.5	21.5	12	17	43	5	8	11	0.8	M6-1.0x18
BGSNx75	19	75	36	36	17	25	72	5	12.5	18	0.8	M6-1.5x20
BGSMx100	19	100	45	45	23	35	90	5	15	22	0.8	M10-1.5x20
BGSMx125	25	125	45	45	23	35	90	5	20.5	22	0.8	M10-1.5x25
