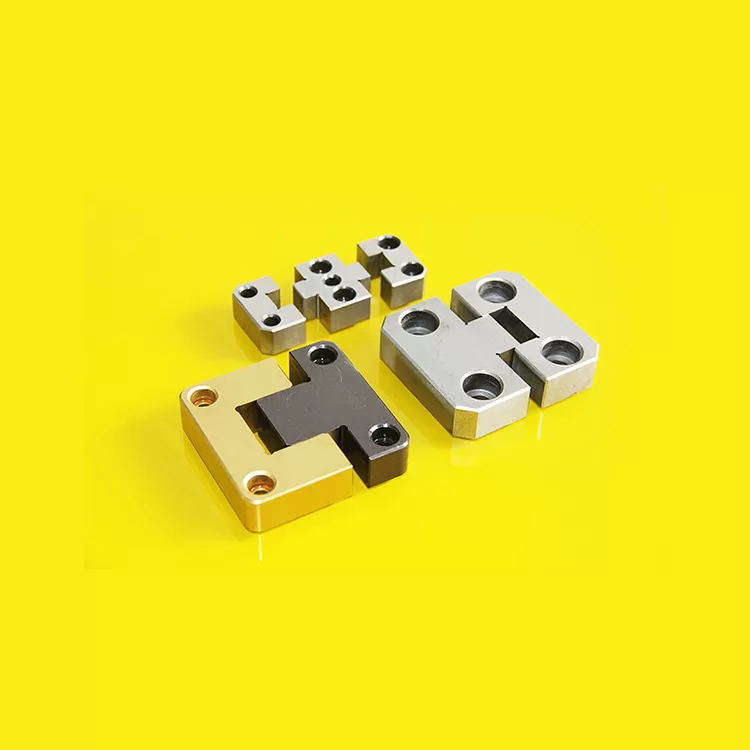

Locked Shape Blocks Interlock Mold

Introduction:Locked Shape Blocks Interlock Mold

Product Details

Code No.	T	W	A	B	C	D	H	R	S1/S2	Z	SHCS
BGS×100	0.375	1	1.125	0.875	0.53	0.5	2	0.187	0.25	0.015	#10-32×1/2"
BGS×125	0.49	1.25	1.125	0.875	0.66	0.5	2	0.187	0.25	0.03	#8-32×5/8"
BGS×150	0.5	1.5	0.875	0.875	0.56	0.563	1.75	0.187	0.25	0.03	#8-32×5/8"
BGS×200	0.5	2	1.875	0.875	0.66	0.75	2.25	0.187	0.312	0.03	#10-32×1/2"
BGS×300	0.75	3	1.875	0.875	1.13	1.25	2.75	0.25	0.375	0.03	1/4-20×3/4"
BGS×400	1	4	2.875	1.375	1.25	1.5	3.75	0.5	0.5	0.03	3/8-16×1"
BGS×500	1.25	5	2.875	1.375	1.63	2	4.25	0.5	0.825	0.03	1/2-13×1-1/4"
BGS×600	1.5	6	2.875	1.375	1.75	2.5	4.25	0.5	0.825	0.03	1/2-13×1-1/2"

Code No.	T	W	A	B	C	D	H	R	S1/S2	Z	SHCS
BGSM×50	16	50	21.5	21.5	12	17	43	5	8	0.8	M6-1.0×18
BGSM×75	19	75	36	36	17	25	72	5	12.5	18	M6-1.5×20
BGSM×100	19	100	45	45	23	35	90	5	15	22	M10-1.5×20
BGSM×125	25	125	45	45	23	35	90	5	20.5	22	M10-1.5×25
