PCB Separator

Products Details:

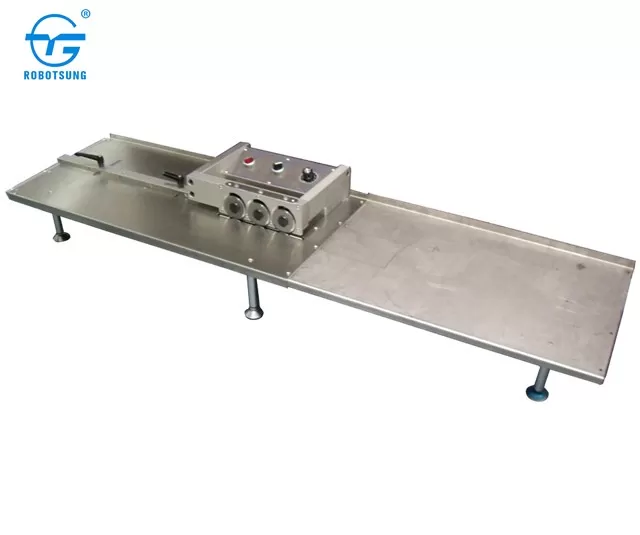

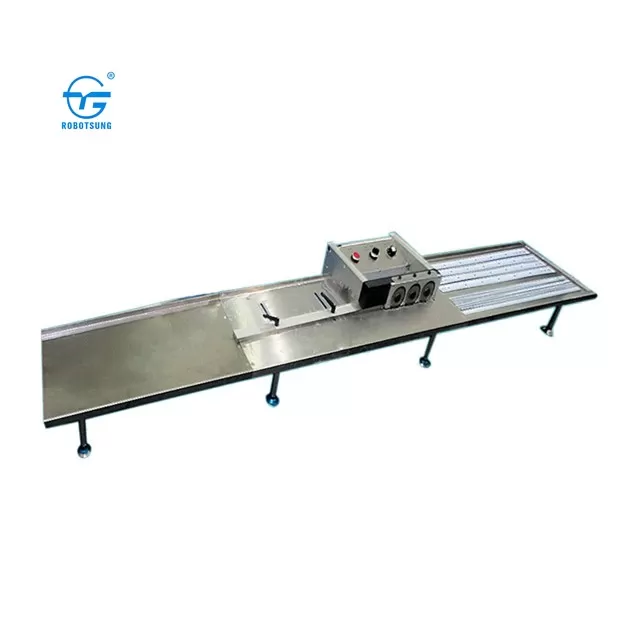

YS-830 PCB separator

Usage:

Be dedicated to the separating of aluminum based light bar, high efficiency, long life, without deformation and burrs, greatly saving labor and improving company benefits.

Parameters:

Maximum Cutting length: Unlimited

Cutting thickness: 0.5-3.0 mm

Materials:led light strip. aluminum based board, FR-4, glass fibre board and PCB, etc.

Feeding efficiency: 2.5 pcs in a minute(1200mm pcb with 10 pcs pcb board).

Machine Size: 300*230*220 mm

Whole Size: 800*370*220 mm.(Feeding plate can be customed)

Blade material: SKD-11 high-speed steel material from Japan

Power: 220V 50HZ

Voltage: 40W

Weight: about 36kg

Storage temperature: -20~50℃

Working temperature: 10~35℃

Limited: the distance between the parts on board and the microgroove should be above 1mm; the side width is unlimited.

Features:

1. The board-cutting is done by 6 blades, and the upside one and the downside one for a cutting unit. So there are Group A, B and C. The whole cutting process is divided into 4 stages. The stress of the cutting process can be reduced by 80% than the traditional one-cut process for the small cutting quantity each time. And the edges of the board are quite smooth after cutting.

2. The cutting process is very stable because of multiple cutting. Even for circuit boards with shallow microgroove.

3. As the low cutting force of the blade, it can prolong the working life of the blades and reduce the cost.

4. Suit for cutting LED aluminum based board, copper substrate, light-emitting tube, light board, display pane, etc.
