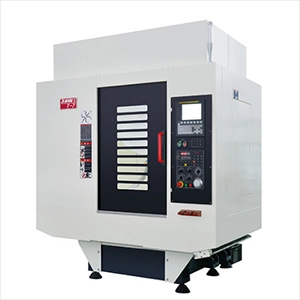

drilling center T-7

Product Features：

 Select HT300 cast iron material, with low melting point (1145-1250 ℃), small shrinkage during solidification, compressive strength and hardness similar to carbon steel, good shock absorption, and permanent quality assurance

 Tempering treatment: eliminate internal stress, maintain long-term stability of castings, and do not deform

 Machine body design: Adopting integrated molding technology, box structure, and internal design with W reinforcement and beige reinforcement, the rigidity of the bed is greatly improved, and the stability during processing is stronger, while extending the service life of the machine tool

1. High speed servo tool change system: The tool to tool change time is 1.4s, greatly improving the tool change efficiency;
2. Z-axis large spacing slider design, using reinforced slider to improve head rigidity;
3. The three-axis motor base adopts integrated molding technology and is matched with precision shaft sleeves, which better improves the rigidity and concentricity requirements of the three-axis motor and meets the requirements of high-speed and high-precision machining;
4.In order to ensure the rigidity and durability of the machine, the Qiaofeng Intelligent Drilling and Tapping Machining Center series models use ball screws and linear sliding rails that are 1.28 times larger than those in the same industry, making your use more reliable and the machine's lifespan longer;
5. The saddle adopts a lightweight design concept, which ensures that the entire saddle falls within the range of support feet and improves the rigidity of the entire machine operation;
6. Ultra wide support foot design, up to 1000MM, 1.2 times more than in the same industry. Effectively dispersing gravity and processing force, with stronger vibration resistance, making it more suitable for high-speed machining.
