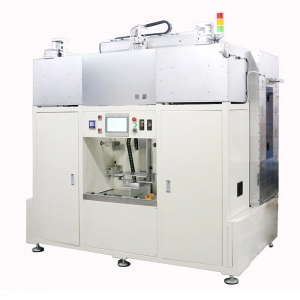

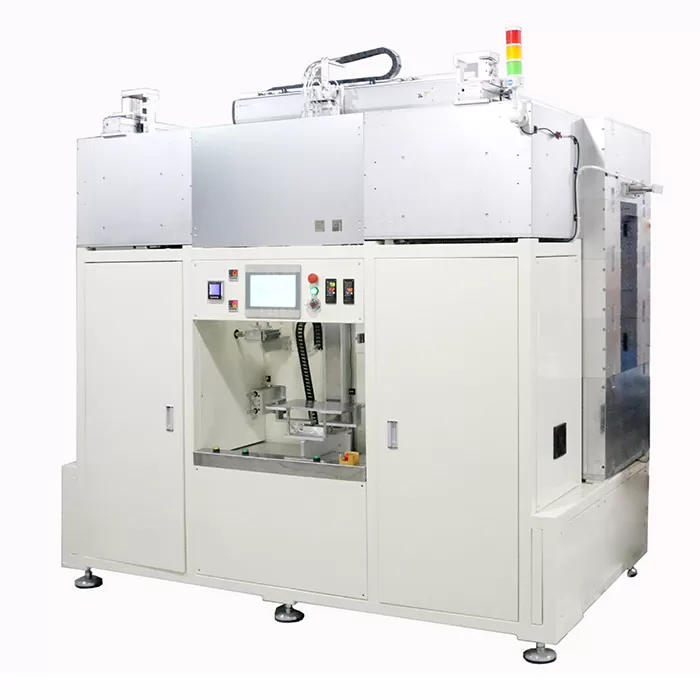

Introduction:OLED mobile phone 3D curved glass hot bending machine
Product Description
The machine function

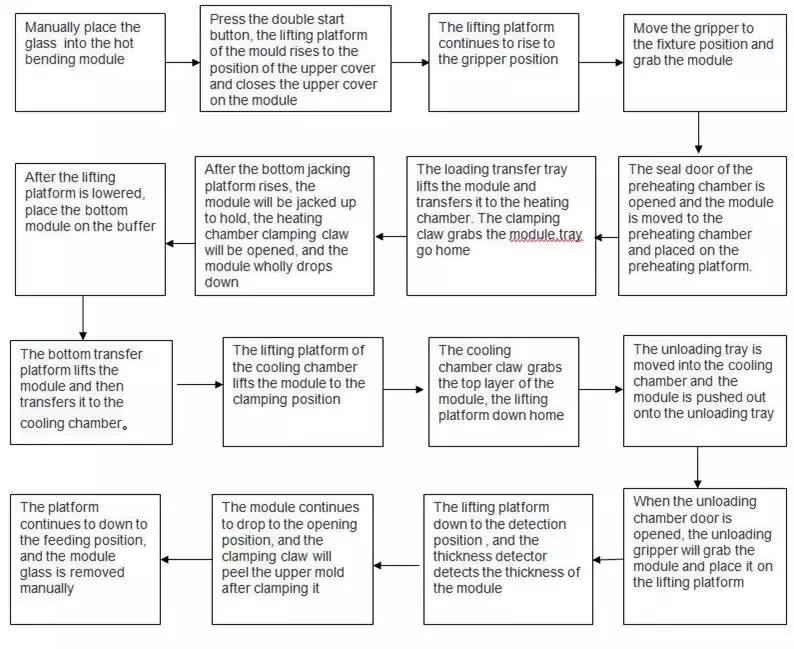

1.1 This equipment is used for 3D hot bending of tablet computer glass, automotive glass and the front and rear cover glass of mobile phone, etc. The customer provides the flat glass for heating bending with the mould through the hot bending machine, and the glass will automatically forming in the shape of the mould.After the mold reaches the loading and unloading port, the upper cover of the mold will be opened automatically.
1.2 This equipment is suitable for hot bending of tablet computer glass, automotive glass and the curved screen of mobile phone .In different products of hot bending, just change the corresponding hot bending mold.
1.3 The equipment is operated by manual loading and unloading, and the machine automatically cycle heating and forming.

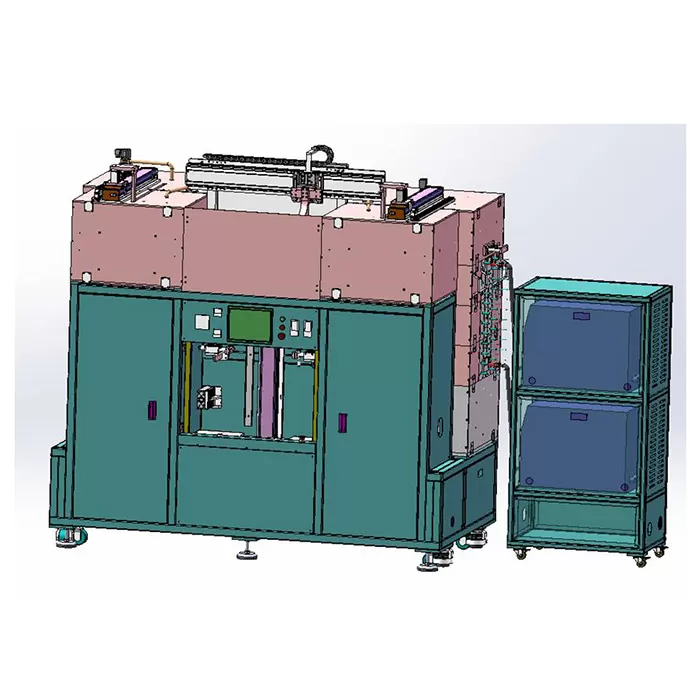

No. | Item | Quantity or requirement | Remarks |
2.1.1 | The machine underframe | 1 set | |
2.1.2 | Module lifting mechanism | 1 set | |
2.1.3 | Module in-out transfer chamber | 1 set | |
2.1.4 | Mold heating chamber | 1 set | |
2.1.5 | Transfer chamber at the bottom of the module | 1 set | |
2.1.6 | Mold cooling chamber | 1 set | |
2.1.7 | Operation interface | 1 set | Display screen |
2.1.8 | High frequency machine frame | 2set | |
2.1.9 | High purity nitrogen generator | 1 set | DM-100 |
No. | Item | Specification and parameter | remarks |
3.1.1 | Equipment capacity (C/T: cycle time) | ＜180sce/pcs | |
3.1.2 | Suitable size | Within 14" | |
3.1.3 | Equipment failure rate | ≤2% | |
3.1.4 | Yield | ≥80% | NG incoming materials are not included |
3.1.5 | Chamber oxygen content | ≤50ppm | |
3.1.6 | Normal cycle module | 30pcs | |
3.1.7 | Equipment working mode | Double high frequency heating | |
3.1.8 | Mold temperature | 600-850℃ |
No. | Item | Specification and parameter | Remarks |
4.1 | Overall dimensions(mm) | 1) Width: about 1330mm 2) length: about 2400mm 3) height: about 2250mm 4) height of work stage: about 850mm | |
4.2 | Machine weight (Kg) | About: 2000 kg | |
4.3 | The machine color | Machine surface spray treatment, color for computer white, other parts surface chrome or oxidation treatment | |
4.4 | Equipment delivery status | The surface of the equipment is clean and dust-free, and the warning signs should be affixed in places where danger exists, such as high temperature | |
4.5 | Service environment requirements | Clean, dust-free, clean room |
