Introduction:Panrui Air Dryer for Compressor

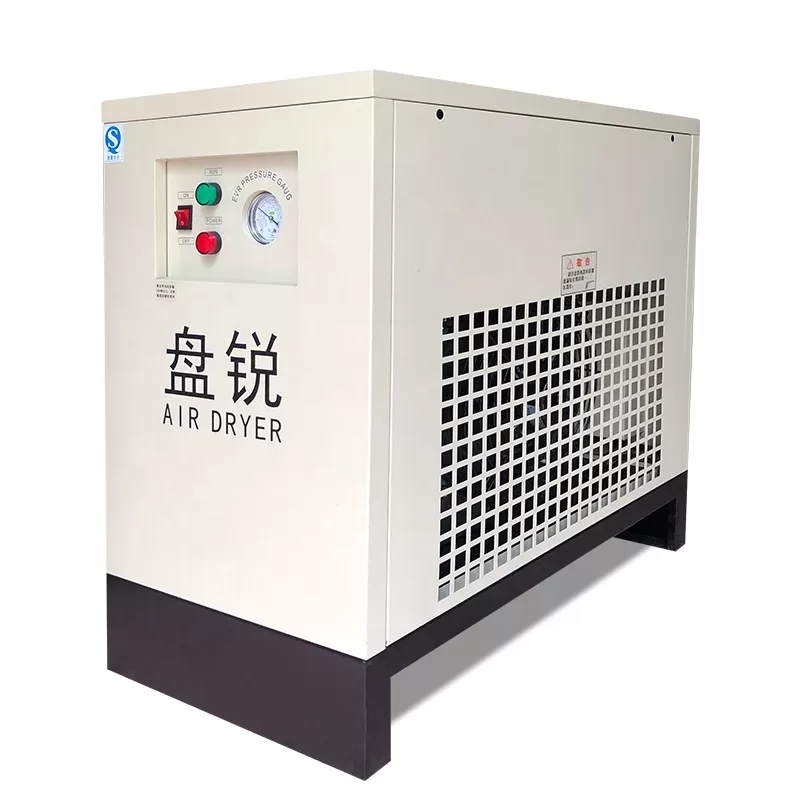

Panrui Air Dryer for Compressor
Compressor: Gree/ Panasonic
Inlet temperature: ≤45°C for ordinary type / ≤ 80°C for high temperature type
Cooling method: Air-cooling
Ambient temperature: 2 ~ 40°C
Design dew point: 2 ~ 10°C
Refrigerant: R22/ R134a/ R404A/ Customize
Inlet pressure: 0.6-1.0 Mpa
Pressure drop: ≤ 0.03 MPa
High temperature type air dryer is with pre-cooler, air temperature and pressure controller.
Welcome customize the pressure, color, or refrigerant etc..
| The specifications of refrigerated air dryer | ||||
| Model | Working Pressure(mpa) | Capacity(m³/min) | Weight(kg) | Dimension(mm) |
| 10AC | 0.8-1.3 | 1.5 | 55 | 750*450*770 |
| 15AC | 0.8-1.3 | 2.2 | 60 | 750*450*770 |
| 20AC | 0.8-1.3 | 2.8 | 80 | 750*450*820 |
| 30AC | 0.8-1.3 | 3.8 | 100 | 950*500*890 |
| 50AC | 0.8-1.3 | 6.8 | 150 | 1030*500*1000 |
| 75AC | 0.8-1.3 | 10 | 185 | 1200*600*1200 |
| 100AC | 0.8-1.3 | 13.8 | 210 | 1300*700*1290 |
FAQ
1. Are you a factory or trading company?
We are a professional manufacturer.
Both OEM & ODM service can be accepted.
2. Which trade term can you accept?
Available trade terms: FOB, CIF, CFR, EXW, CPT, etc.
3. How long will you take to arrange the production?
Usually we can delivery the goods within 1-7 days. Other customization needs to about 10-15 days.
4. How long could your air dryer be used?
Generally, more than 10 years.
5. Will you provide some spare parts of the machines?
Yes, sure.
6. What’s your warranty?
Our warranty is one year.
It means that if our machine has any problems within one year, we will send you new one or free spare parts for your replacement.
