Introduction:60 ton XCT60L4 small truck crane machine

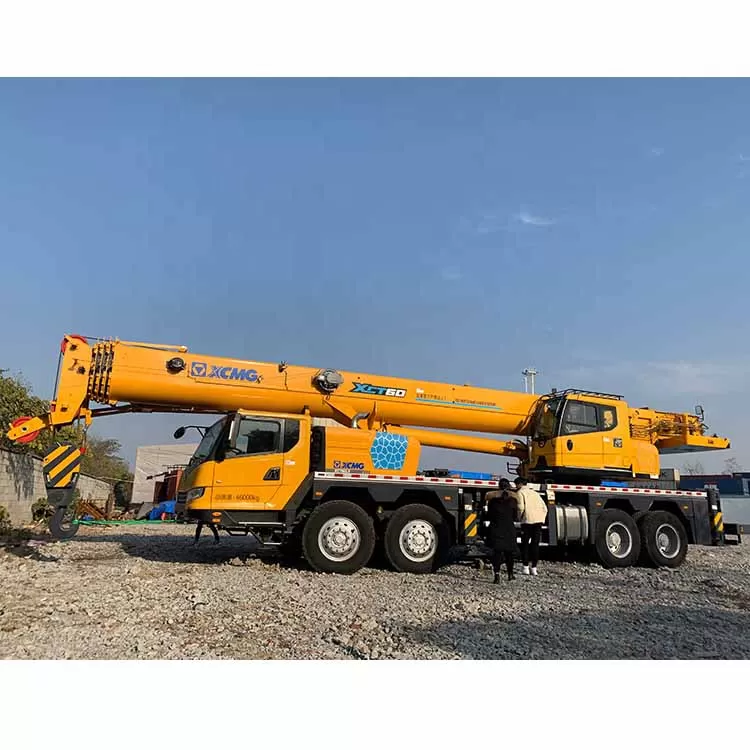

60 ton XCT60L4 small truck crane machine
Item | Unit | Parameter | |
Dimensions (length x width x height) | mm | 14090×2790×3630 | |
Total vehicle mass in travel configuration | kg | 42200 | |
Axle load | 1st and 2nd axle | kg | 16200 |
3rd and 4th axle | kg | 26000 | |
Engine rated power/rpm | kW/(r/min) | 247/2200 | |
Max. output torque/rpm | N.m/(r/min) | 1350/1100-1600 | |
Max. travel speed | km/h | 90 | |
Min. turning diameter | m | 24 | |
Min. ground clearance | mm | 250 | |
Approach angle | ° | 18/10 (front protective device included) | |
Departure angle | ° | 13 | |
Max. grade ability | % | 36 | |
Fuel consumption per 100 km | L | 36 | |
Max. total rated lifting capacity | t | 60 | |
Min rated working radius | m | 3 | |
Max. load moment | Base boom | kN.m | 2009 |
Fully-extended boom | kN.m | 1113 | |
Outrigger span | Longitudinal | m | 6.1 |
Lateral | m | 7.1 | |
Hoist height | Base boom | m | 11.3 |
Fully-extended boom | m | 43.6 | |
Boom length | Base boom | m | 11.5 |
Fully-extended boom | m | 44 | |
Jib offset angle | ° | 0,15, 30 | |
Boom raising time | s | ≤40 | |
Boom fully extending time | s | ≤90 | |
Hoistin Hoisting speed (single line, 4th layer, no load) | Main winch | m/min | ≥130 |
Auxiliary winch | m/min | ≥130 | |
