hydraulic compactors roller

Introduction:26 ton XP263S hydraulic compactors roller

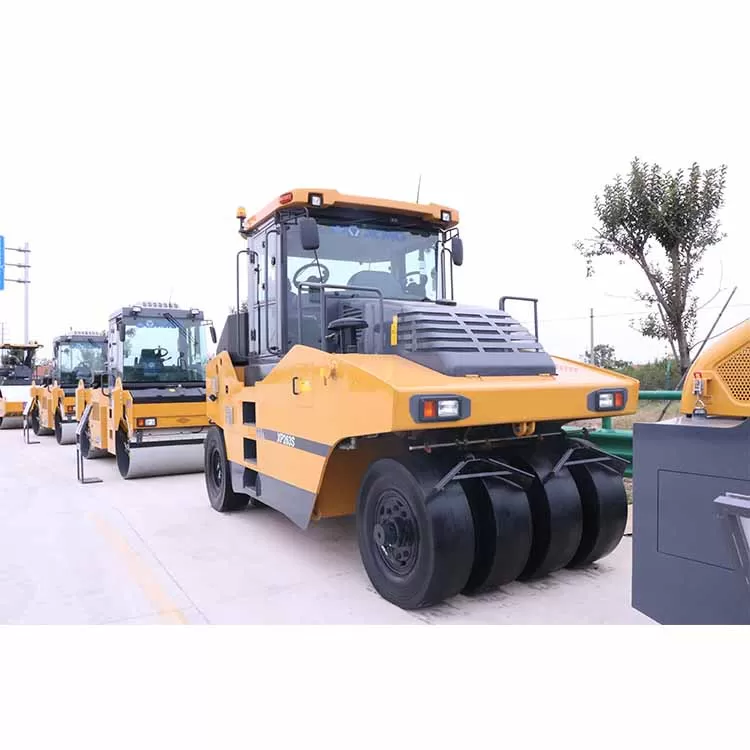

26 ton XP263S hydraulic compactors roller

Item		Unit	XP263S
Maximum operating mass		kg	26300
Compaction width		mm	2360
Overlapping of tyres		mm	65
Ground pressure		kPa	200-470
Minimum turning radius		mm	7620
Swing quantity of front wheel		mm	50
Minimum ground clearance		mm	300
Theoretical gradeability		%	20
Wheel base		mm	3840
Travel speed	Gear I	km/h	0-8
Travel speed	Gear II	km/h	0-13
Engine	Type	-	SC7H180.2G3
	Rated power	kw	132
	Rated speed	r/min	1800
	Rated fuel consumption rate	g/kw.h	≤233
Tyre specification		-	13/80-20
Tyre tread pattern		-	Smooth tread
Number of tyres		-	Front 4 rear 5
Length(standard water sprinkler)		mm	4925
Length(standard oil sprinkler)		mm	5015
Width		mm	2530
Height		mm	3470
Diesel tank volume		L	170
Water tank volume		L	650
