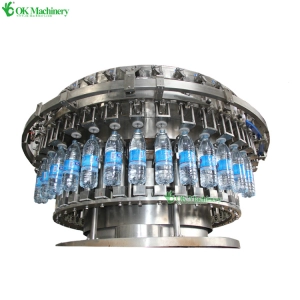

Mineral water filling machine

Introduction:Automatic high speed mineral water filling machine

Description

Model: CGF18-18-6

Capacity: 6000-8000BPH (500ml PET bottle)

Touch screen: TOUCHWIN.(taiwan)

PLC : Mitsubishi( Janpan)

Certification : CE

Automatic grade :automatic

Dimension: 3150×2250×2700 (L*W*H)

Weight: 4500Kg

Power: 5kw

Technical Standards

Automatic high speed mineral water filling machine price

1	Name	Model: CGF18-18-6
2	Main material :	Stainless steel SUS304 , SUS316
3	Production capacity	6000-8000bph 500mL
4	Bottle size	from 300ml, max 2000ml in one machine
5	Bottle height/diameter	200-350mm/Φ52~Φ84mm
6	Aseptic air consumption	0.4m3/min(0.4~0.6Mpa)
7	CO₂ consumption	150g/100L
8	Operating voltage AC	380V/220V/415V/440V ( 3P 50/60HZ)
9	Dimension	220018302100(LWH)
10	Weight	4000kg
