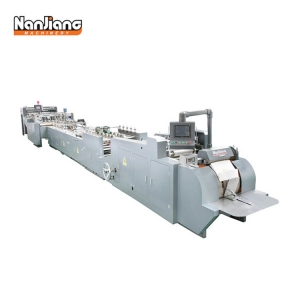

Paper Carry Bag Making Machine

Machine Model	HD-430A
Min. Paper size	545x300mm
Max. Paper size	1185x600mm
Paper Thickness	100-200gsm (210-300gsm Die-cutted Paper)
Paper Bag Width	180-430mm
Bag Tube Length	300-600 mm
Bag Bottom Width	80-170mm
Speed	40-60Bags/min.
Total Power	15kw
Machine Weight	10000KG
Machine Dimension (L*W*H)	15000 x 2000 x 2000mm

Having absorbed the new technology of domestic and abroad, we successfully developed a new kind of paper carry bag making machine. The materials should be printed sheet paper or non printed sheet paper as per end-user's preference. This machine features a continuous function of automatic paper feeding,die-cutting(for 100-200gsm paper), gluing, creasing, bottom pasting and bag formation at a stroke. It is an ideal equipment for small paper bags packing food grocery, Gift,etc without any manual process.
