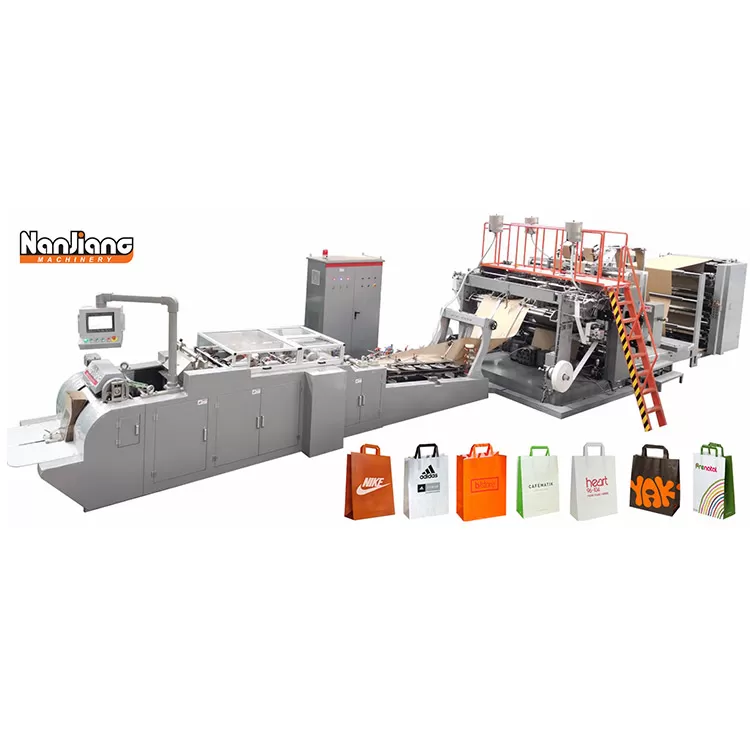

Flat Handle Paper Carrier Bag Machine

Introduction:Flat Handle Paper Carrier Bag Machine

Product Description

Machine Model	WFD-430B
Paper Roll Width	630-1250mm
Paper Bag Width	220-450 mm
Paper Tube Length	280-600mm
Bag Bottom Width	80-200mm
Paper Thickness	80-150gsm
Max. Roll material diameter	￠1200 mm
Material Core Diameter	￠76mm(3″)
Size of Flat Belt	15mm
Flat Handle Rope Height	80mm
Handle Patch Width	55mm
Handle Width	78mm
Paper GSM for Handle patch	70-100gsm
Handle Patch Length	170 mm
Handle Patch Width	55mm
Handle patch Roll Diameter	￠800 mm
Paper Patch Roll Width	70-100 mm
Max. Production Speed	135Bags/min.
Total Power	20KW
Machine Weight	22000KG
Machine Dimension (LWH)	16000 x 3000 x 2600 mm
