Dongguan Morningsun Solar Technology Co., Ltd.

Since 2020

Morningsun solar produces solar panels that range from 0.1W-380W monocrystalline silicon and polycrystalline silicon solar panels, and solar application products.

View Contact Details

Flinks:

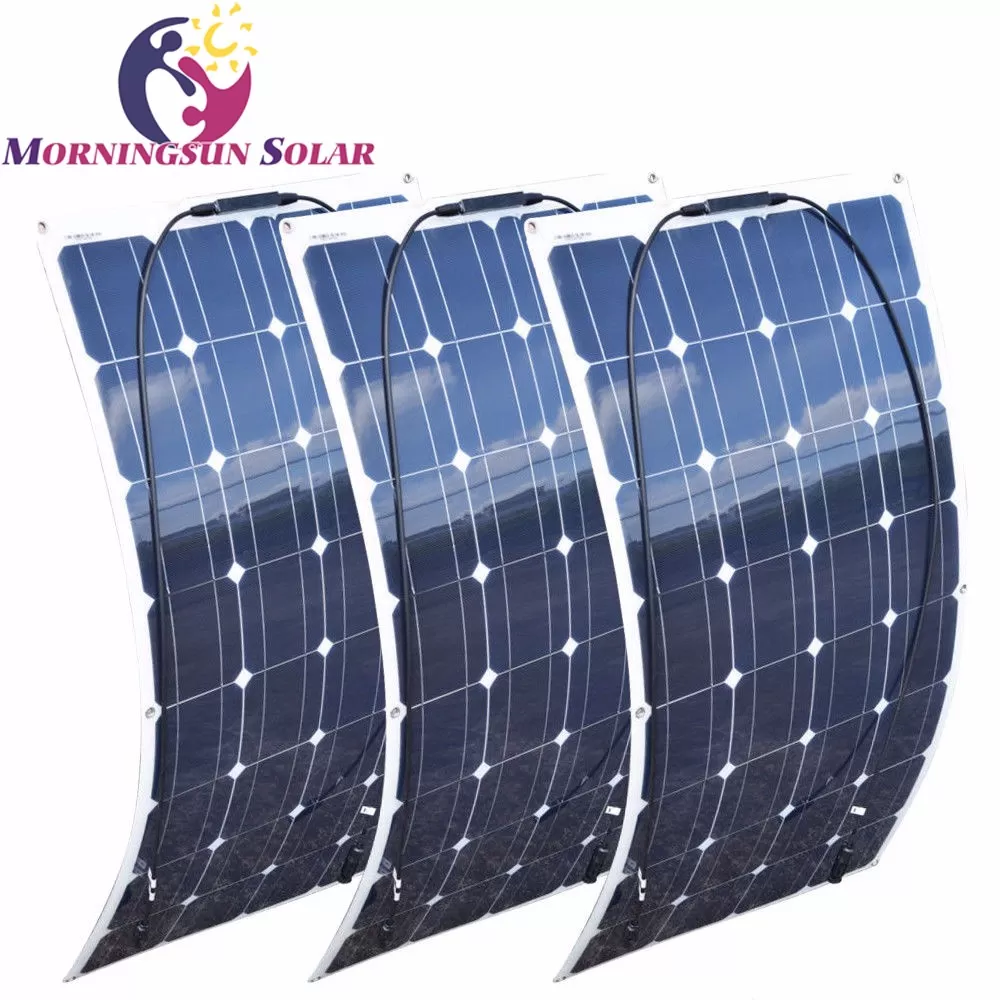

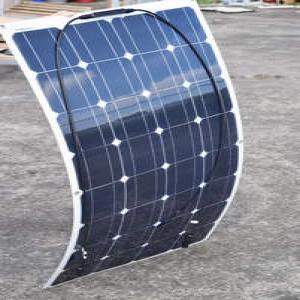

flexible solar panel

Introduction:flexible solar panel 100w 200w 300w mono and poly pv panel

Packing:
3pcs 100w solar panel
Specification:
Type: solar panel
Rated capacity: 100W
Maximum power Voltage:16V
Flexible solar panel: Yes
Size: 1050 * 540 * 3mm
Number of cells: 32 pieces
Max. Power: 100W
is_customized: Yes
Material: Monocrystalline silicon

Specification:

* Optimal power [Pmax]: 100W
* Working voltage [Vmp]: 18V
* Working current [Imp]: 5.56A
* Short circuit current [Isc]: 5.8A
* Open circuit voltage [Voc]: 20V
* Dimensions: 1050*540*2.5mm/41*21*0.09inch
* Air resistance: 50psf (2400 pascals)
* Snow resistance: 113psf (5400 pascals)
* Hail impact: 25mm (1 inch) at 23 m/s (52mph)
* Net weight: 2.15kg/75oz

Warm Tips: the plastic film is used to protect the panel,just as the phone's film, please remove it when using.
