Servo Motor Atc CNC Router

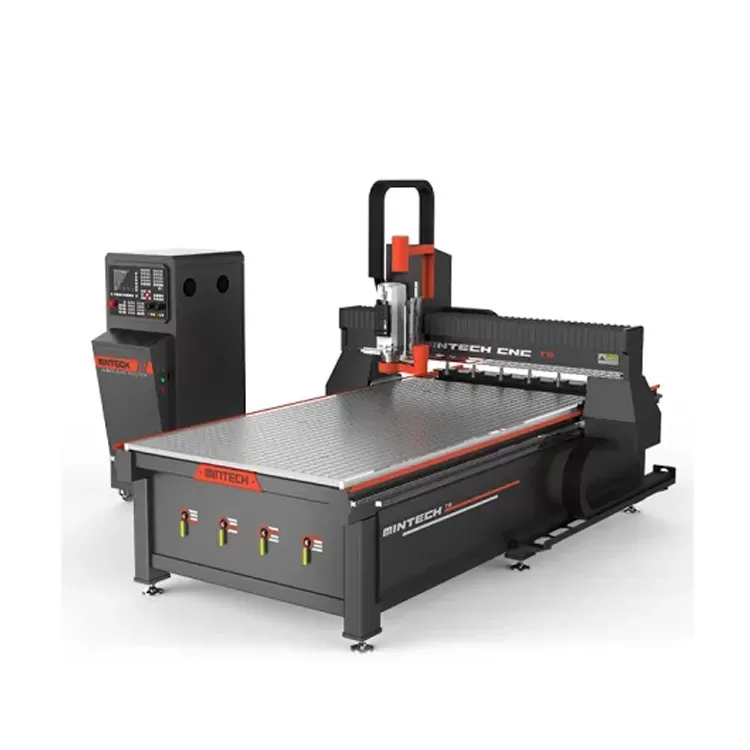

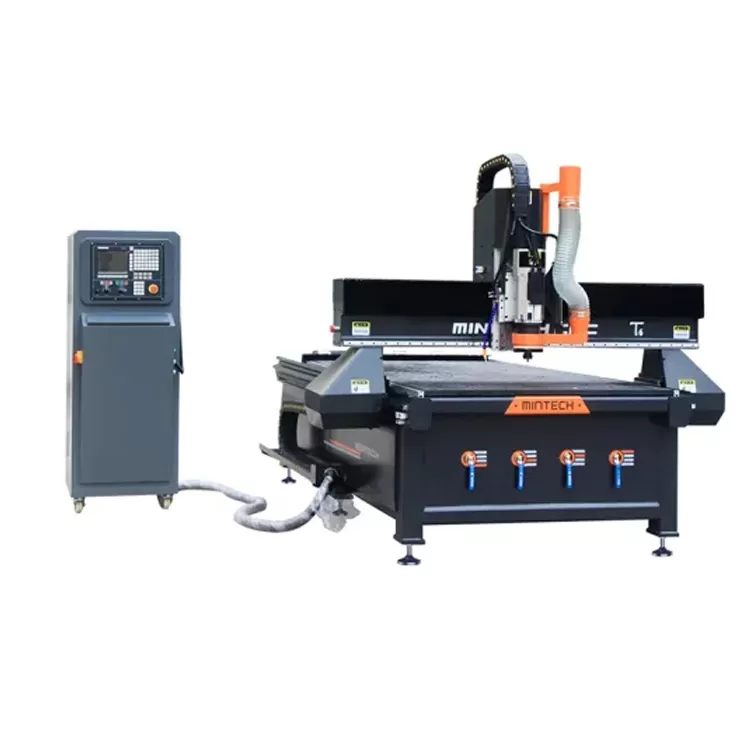

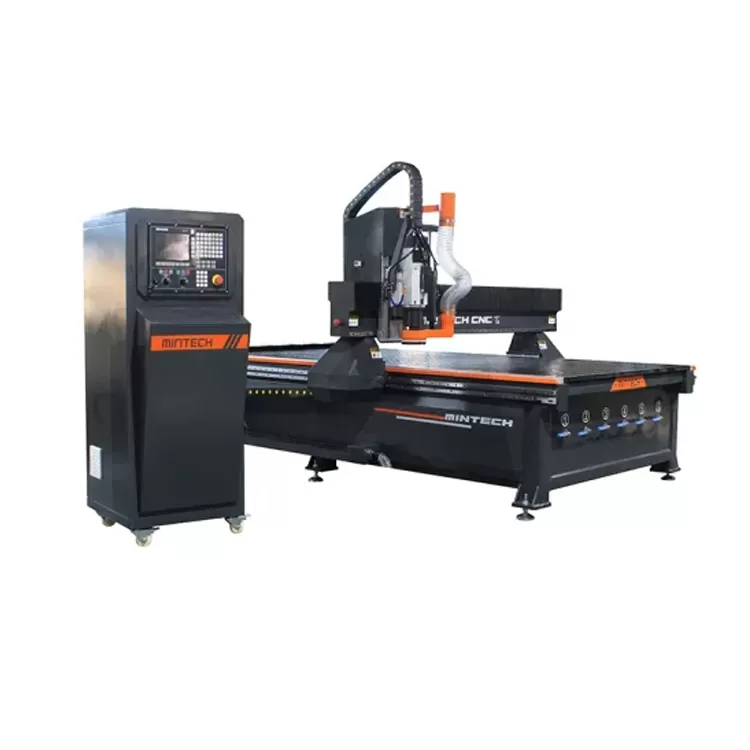

High Precision 1325 9KW Servo Motor ATC CNC Router

MINTECH T-6 is a popular, heavy-duty cnc routers engineered to provide the highest combination of quality and precision, which incorporates the reliability, robustness and cutting edge technology and has always been one of the hot sale of MinTech products.It offers the perfect platform for high-speed, vibration-free processing of even the toughest materials aiming at signmaking, non ferrous metal fabrication , plastic &acrylic fabrication ,3D carving that require extremely high tolerances.

· Precision Ball Screw, Linear Rail, Helical Rack and Pinion Ensure High Precision Machining
· Automatic Tool Length Calibration with Touch Pad
· Easy-to-use XYZ-Axis CNC Hand Wheel
· Grid Phenolic Vacuum Table
· High Strength, Heated Treated Steel Frame Construction Provides a Stable Structure and Reduces Vibration
· Pneumatic Operated CNC Dust Hood (Optional)
· Servo Motor with Linear Rail Ensures Smooth Movement along XYZ-Axis
· Automatic Tool Changer with 5 Position Tool Rack

Model	T6	Working size	1300mm * 2500mm * 60mm
Working voltage	AC380V / 220V /50HZ / 3PH	Z axis travel	160mm
The height from beam to working table	130mm	Repeated positioning accuracy	0.05mm
Max working speed	20m/min(Tools required for maximum cutting)	Maximum idle speed	30m/min
Spindle motor	9KW Automatic tool change	Spindle speed	4000-24000RPM
Splint specification	ER25 ISO30	Cooling	air- coolant

FAQ

Q:I knew nothing about this machine, what kindof machine i should choose?
A:Just tell us what you want to do byusing CNC machine, then let us give you perfectsolutions and suggestions.

Q:What technical services can you provide?
A:We will send video and English manual with the machine. And 24-hour professional technicians online training and problem solving. It provide detailed installation courses.

Q:If some problems happen to this machineduring warranty period, what should I do?
A:We will supply free parts during machine warranty periodif machine have some problems. While we also supplyfree life long after-sales service. So any doubts, just let usknow, we will give you solutions.
