Turntable Bag-feeding Packaging Machine

Introduction:Packaging Materials: PE Composites, CPP Composites.

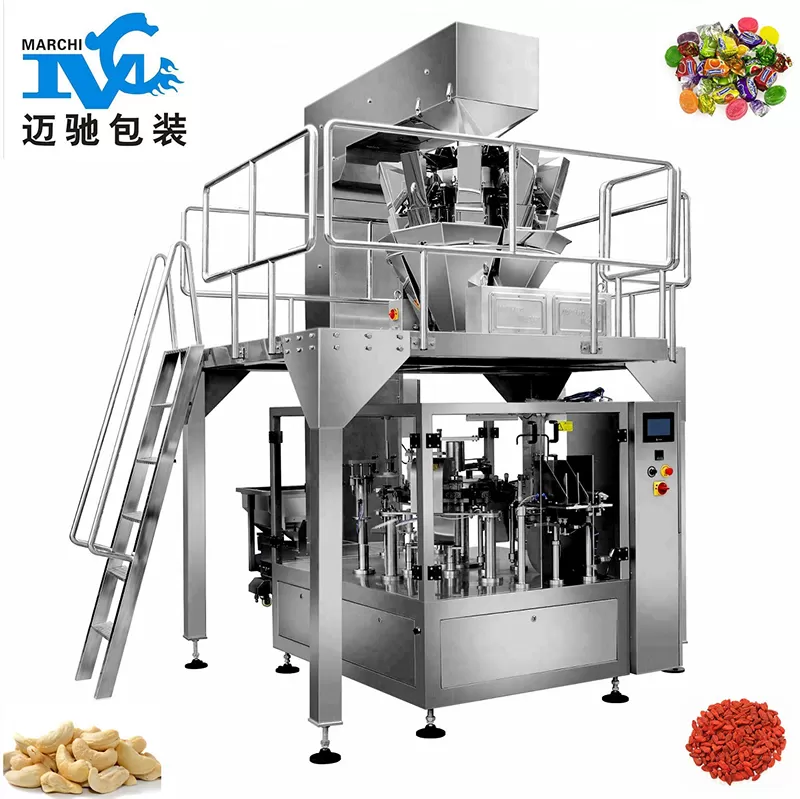

Turntable Bag-feeding Packaging Machine

Equipment features：

1.Pouch form: flat pouch, stand up pouch, zipper pouch.
2.Packaging Materials: PE Composites, CPP Composites.
3.Packaging process: pouch taking-opening-metering-filling-sealing-product output.
4.Adopt mechanical transmission, more stable performance, simple maintenance, longer service life and low failure rate.
5.Adopt vacuum pouch opening mode.
6.Different pouch widths can be automatically adjusted.
7. No opening of the pouch no dosing of material.
8.Install safety guard doors.

Model	MCGD8-200	MCGD8-235	MCGD8-250	MCGD8-300	MCGD9-300	MCGD8-350
Packaging size L×W(mm)	(100～300)×(100～200)	(50～320)×(90～235)	(150～500)×(150～300)	(150～500)×(150～300)	(200～520)×(160～300)	(200～500)×(240～350)
Capacity(pouch/min)	25～50	25～50	25～45	20～40	10～30	10～25
Pouch material	PE laminated film, aluminum foil, aluminum-plated film etc.
Pouch type	Flat pouch, stand-up pouch, gusset bags, box bags, zipper pouch, suction nozzles bags, special-shaped pouch, etc.
Pouch feeding mode	Horizontal pouch feeding, vertical pouch feeding
Pouch width adjustment/td>	Automatic adjustment, manual adjustment
Power supply	380V 50Hz 5.5kw	380V 50Hz 6.5kw	220V 50Hz 3.8kw	220V 50Hz 4.5kw	380V 50Hz 6.5kw	380V 50Hz 6.5kw
Compressed air	0.6～0.8 MPa 1.5m³/min
Total weight(t)	1.2	1.3	1.5	1.7	2.0	2.2
Dimension L×W×H(mm)	1645×1450×1480	2611×1895×1926	2676×1955×1674	2792×2123×1833	2800×1680×1906	2894×2615×1768
