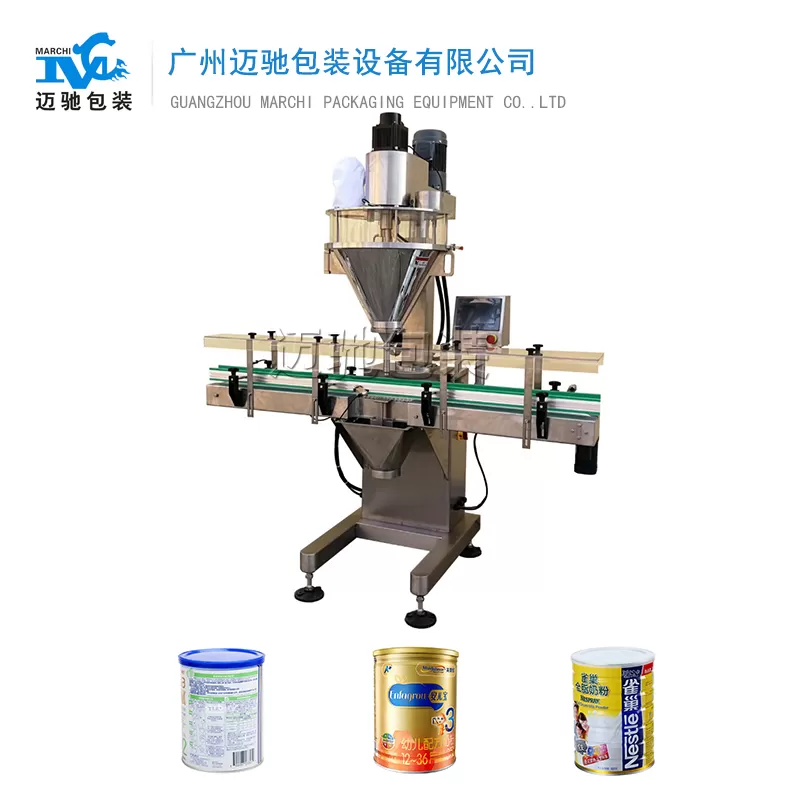

Introduction:Whole stainless steel structure, combinational or open transparent hopper is easily to disassemble and be washed without toodosls.
2.Servo motor and servo drive control the screw.
3.PLC control the system, touch screen and human-machine interface display the content, easy to operate.
4.Designed as weighing feedback proportion tracking type , which overcomes the disadvantages of changing the weight of the Packaging due to the change in the proportion of the material.
5.Various product adjusted parameter formulas can be stored, for late use, it can be saved maximum 10 recipes.
6.Accessories can be replaced, adapting to various materials such as ultra-fine powders and tiny granule.
| Model | MC-LL-25L | MC-LL-50L | MC-LL-75L | MC-LLB-25L | MC-LLB-50L |
| Hopper volume（L） | Semi-open hopper 25L | Semi-open hopper 50L | Semi-open hopper 75L | Combinational type transparent hopper 25L | Combinational type transparent hopper 50L |
| Packaging weight（g） | 1～200 | 10～2000 | 10～5000 | 1～500 | 10～5000 |
| Packaging accuracy（g） | ≤ 100, ≤±2%; 100 ～200g, ≤±1% | <100,<±2%;100~500, <±1%;＞500, <±0.5% | ≤ 100, ≤±2%; 100～500, ≤±1% | ≤100,≤±2%;100~500,≤±1%;≥500,≤±0.5% | |
| Capacity(time/min) | 40～100 | 30～100 | 10～30 | 40～120 | 40～ 120 |
| Power supply | 3P AC208～415V 50/60Hz | ||||
| Total power (kw) | 1.2 | 1.9 | 3.75 | 0.93 | 1.4 |
| Total weight(kg) | 140 | 220 | 280 | 130 | 160 |
| Dimension L× W ×H（mm） | 648×506×1025 | 878×613×1227 | 1141× 834×1304 | 800×790×1900 | 1140×970×2030 |
