Introduction:H07RN-F flexible rubber cable is suitable to use in domestic appliances, such as kitchens, portable or mobile equipment, electrical tools, transformers, pumps, welders, grinders etc.
APPLICATION
H07RN-F flexible rubber cable is suitable to use in domestic appliances, such as kitchens, portable or mobile equipment, electrical tools, transformers, pumps, welders, grinders etc. Also for use in drainage and water treatment, cold environments and severe industrial environments. H07RN-F cable may be rated 0.6/1KV where the installation has been built in protection.

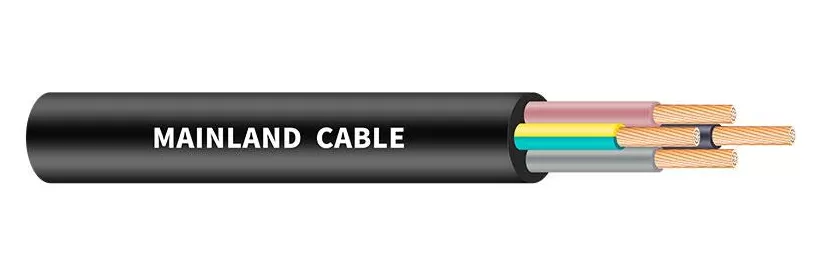

CONSTRUCTION
Rated Voltage: 450/750V
Conductor: Fine stranded bare copper, class 5
Insulation: Ethylene-propylene rubber ( EPR) type EI4 in according to EN 50363-1
Outer Sheath: Black, Chlorinated Polyethylene rubber ( CPE) EM2 in according to EN 50363-2-1
CORE IDENTIFICATION
1 core---white
2 core---Blue, Brown
3 core---Green/Yellow, Blue, Brown
4 core---Green/Yellow, Brown, Black, Grey
5 core---Green/Yellow, Blue, Brown, Black, Grey
6 cores and above--green/yellow + white numbered
STANDARDS: EN 60228, EN 60332-1-2, EN 50525-2-21:2011
APPROVALS: VDE, CE, CPR, UKCA
FEATURES
★ Maximum conductor operating temperature: +90°C ❊
★ Maximum conductor temperature during short circuit: +250°C
★ Lowest ambient temperature for fixed installation: -40°C
★ Lowest ambient temperature for mobile installation: -25°C
★ UV, sunlight, water, oil, abrasion resistant
❊ Max continuous operating conductor temperature in normal use:
+60°C ( in every case of mobile installation )
+90°C ( fixed protected installation )
SIZE RANGE
| Cable Type | No.of Cores | Size(mm²) |
| H07RN-F | 1 | 1.5~630 |
| H07RN-F | 2 | 1.0~95 |
| H07RN-F | 3 | 1.0~300 |
| H07RN-F | 4 | 1.0~300 |
| H07RN-F | 5 | 1.0~240 |
| H07RN-F | 6~36 | 1.5 |
| H07RN-F | 6~36 | 2.5 |
| H07RN-F | 6~36 | 4 |
| H07RN-F | 6~36 | 6 |
