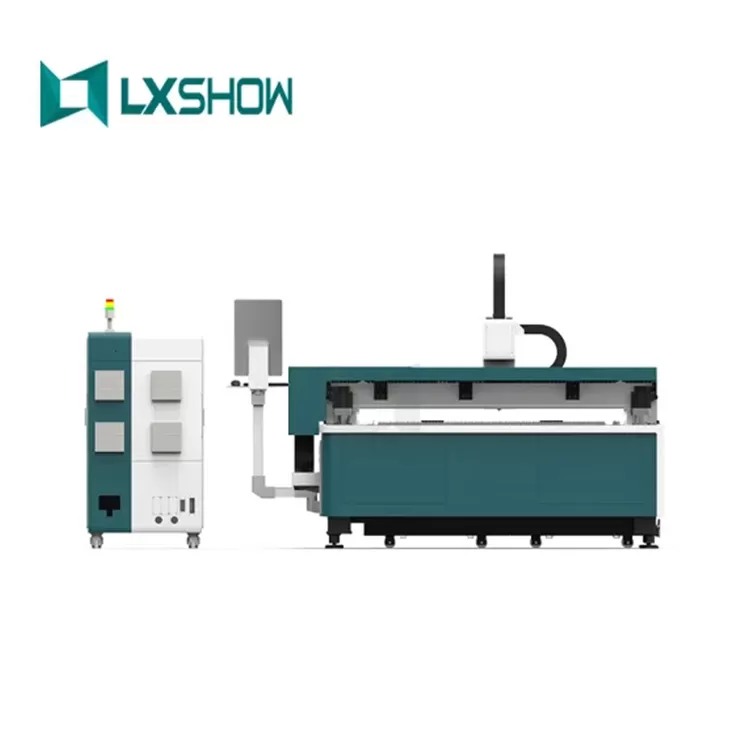

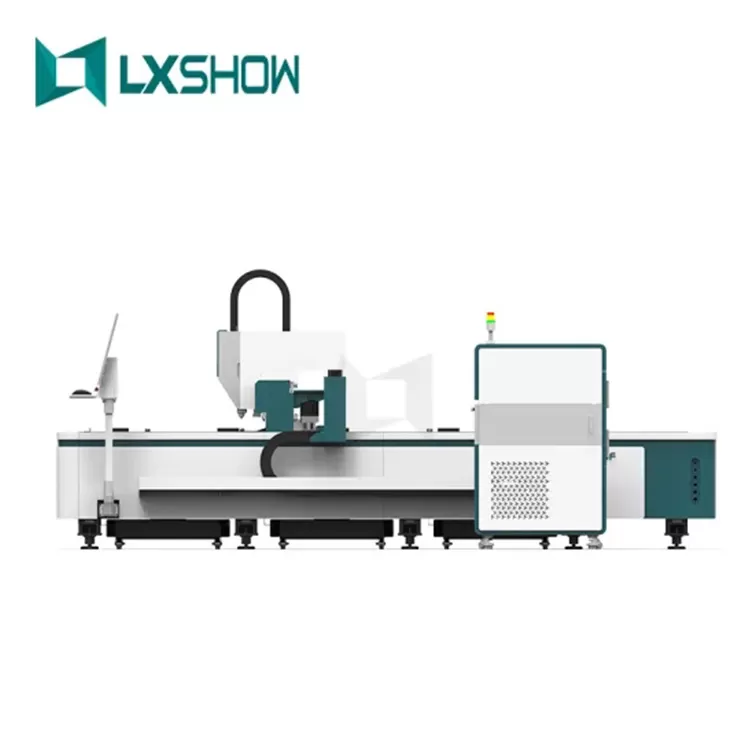

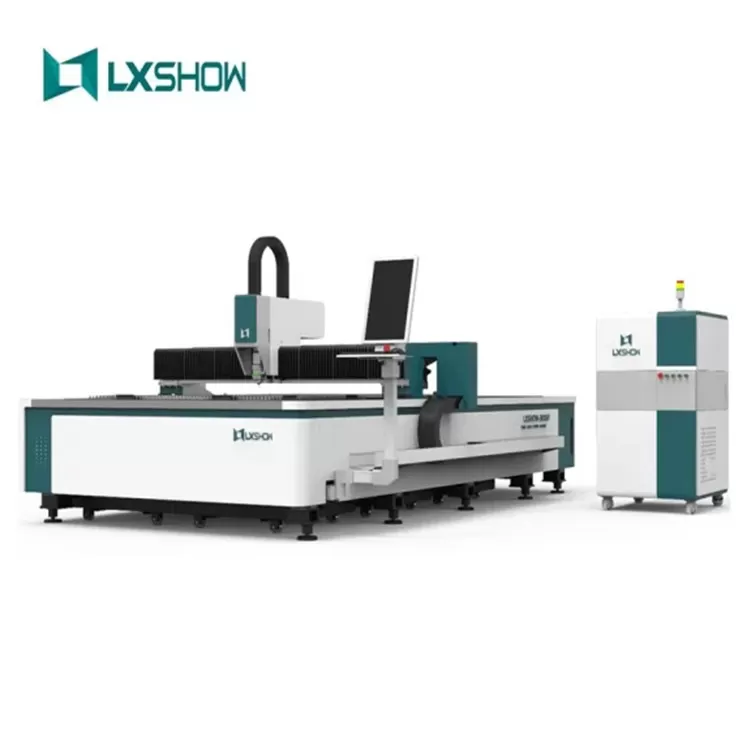

Fiber Laser Cutting Machine

Introduction:Fiber Laser Cutting Machine

Our advantage

(1). High rigidity heavy chassis, reducing the vibration generated during the high-speed cutting process.

(2). Gantry double-drive structure,with imported Germany rack & gear transmission system, which improves the production efficiency.

(3). High-performance cast aluminium guide rail, after infinite aalysis ,which accelerates the cicular arc cutting speed.

(4). High precision, fast speed, narrow slit, minimum heat affected zone, smooth cut surface and no burr.

(5). The laser cutting head does not come into contact with the surface of the material and does not scratch the workpiece.

(6). The slit is the narrowest, the heat affected zone is the smallest, the local deformation of the workpiece is very small, and there is no mechanical deformation.

(7). It has good processing flexibility, can process any pattern, and can cut pipes and other profiles.

(8). Non-deformable cutting can be performed on materials of any hardness such as steel plates, stainless steel, aluminum alloy plates, and hard alloys

Equipment Specification
Model	LXF3015	LXF4015	LXF4020	LXF6020
Cutting Area	3000*1500mm	4000*1500mm	4000*2000mm	6000*2000mm
Laser source	Raycus OR other Brand	Raycus OR other Brand	Raycus OR other Brand	Raycus OR other Brand
Max Moving Speed	120m/min,Acc=1.2G	120m/min,Acc=1.2G	120m/min,Acc=1.2G	120m/min,Acc=1.2G
Position Accuracy	±0.03mm	±0.03mm	±0.03mm	±0.03mm
Reposition Accuracy	±0.02mm	±0.02mm	±0.02mm	±0.02mm
Power	380V 50/60Hz 50A	380V 50/60Hz 50A	380V 50/60Hz 50A	380V 50/60Hz 50A
Max Loading(KG)	700	1300	1900	1900
Max Loading(KG)	≤4000	≤5000	≤5500	≤6000

FAQ

Q1 :How about warranty?
A1: 3 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge(some parts will be maintained) when if any problem during the warranty period.

Q2:2 I don't know which one is suitable for me ?
A2:Please tell me
1). Your materials.
2). Max size of your material.
3). Max cut thickness.
4). Popular cut thickness.

Q3:Payment terms?
A3: Alibaba trade assurance/TT/West Union/Payple/LC/Cash and so on.

Q4:Do you have CE document and other documents for customs clearance?
A4: Yes,we have Original. At first we will show you and And after shipment we will give you CE/Packing list/Commercial Invoice/Sales contract for customs clearance.

Q5:I don't know how to use after i receive Or i have problem during use,how to do?
A5:
1). We have detailed user manual with pictures and CD,you can learn step by step.And our user manual update every month for your easy learning if there is any update on machine.
2). If have any problem during use,you need our technician to judge The problem elsewhere will be solved by us. We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your problems finished.We can also provide Door service if you need.
