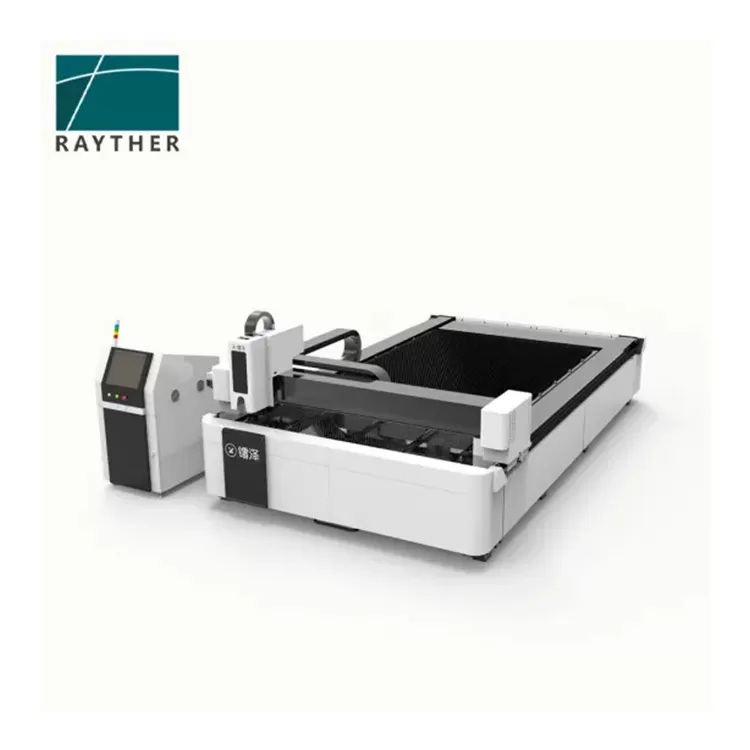

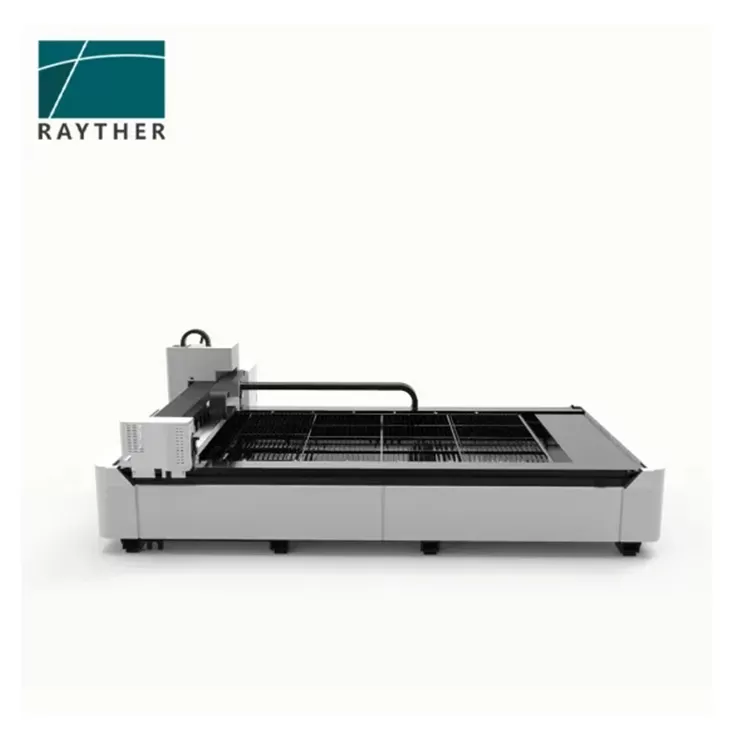

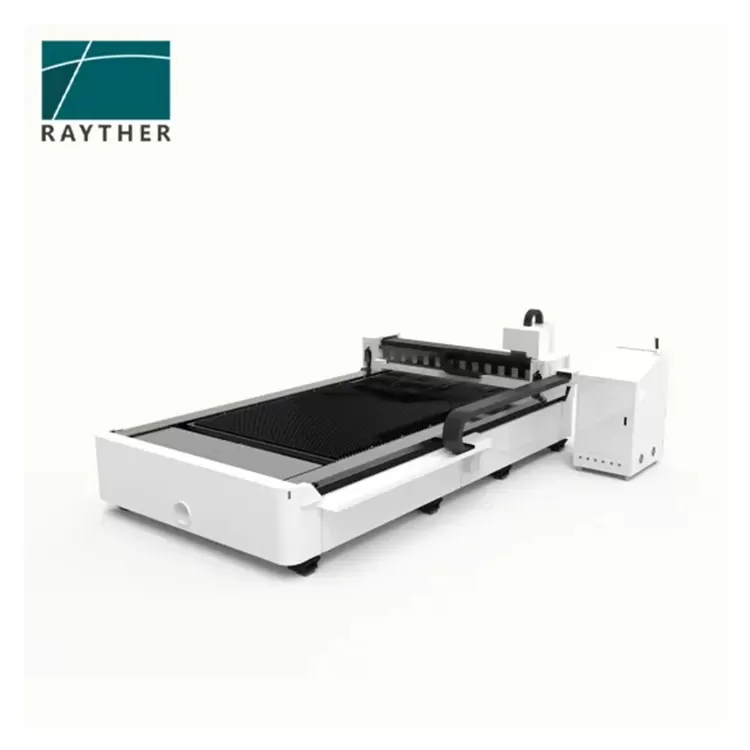

Introduction:Precision Fiber Laser Cutting Machine
Model | 3015S | |
Working area | 3000*1500mm | |
X-axis stroke | 1520 | |
Y-axis stroke | 3020 | |
Z-axis stroke | 150mm | |
Accuracy | X, Y-axis positioning accuracy | ±0.03mm |
X, Y-axis repositioning accuracy | ±0.02mm | |
Speed | X, Y-axis max. positioning speed | 145m/min |
X, Y-axis max. accelerated speed | 1G | |
Power supply | Phase | 3 |
Nominal voltage | 380V | |
Frequency | 50/60Hz | |
Protection grade | IP65 | |
Machine body | Max. working loading | 2500kg |
