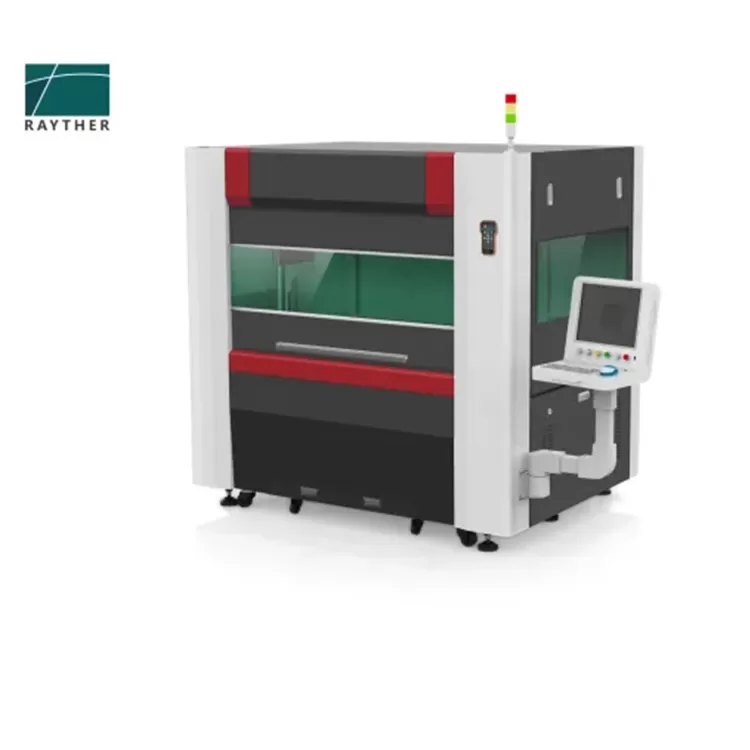

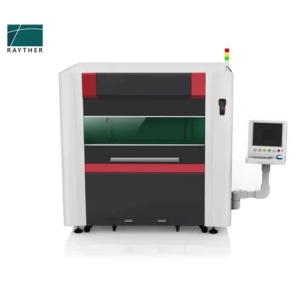

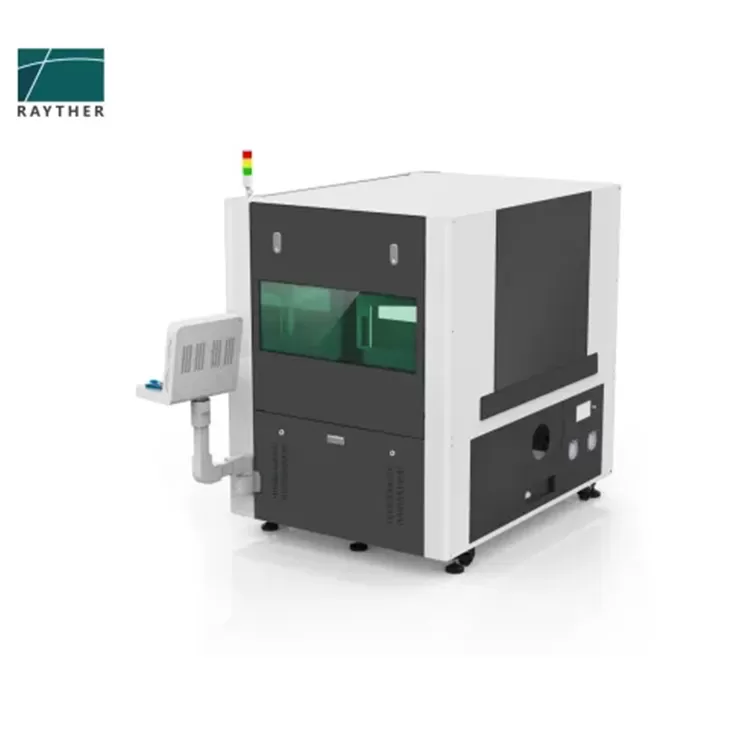

Mini Size Fiber Laser Cutting Machine

Product Description

Model name		LZ6060		LZ1360		LZ1390	LZ1510
Working area		600*600mm		1300*600mm		1300*900mm	1500*1000mm
X-axis stroke		600mm		1300mm		1300mm	1500mm
Y-axis stroke		600mm		600mm		900mm	1000mm
X, Y-axis positioning accuracy		±0.03mm
X, Y-axis repositioning accuracy		±0.015mm
Phase		3
Nominal voltage		380V
Frequency		50/60Hz
Protection grade		IP65
Machine Size(L*W*H)		1350*1800*1955mm		2000*1500*1955mm		2724*2125* 2000mm	2944*2250* 2000mm
Machine Size(L*W*H)		2000KG		2300KG		2500KG	3000KG

FAQ
Q1: What can I get the available machine if I don't know anything about laser?
Leize Technology provides will provide the customized application solution for your requirement, just tell us your
material, material thickness, worktable, and e-mail or Whatsapp ID.

Q2: How to choose the machine that I want?
Leize Technology provides information consulting about the product, price, technology, and industry solutions for customers at any time via a network, telephone, letter, and door to door.

Q3: When I got this machine, but I don't know how to use it. What should I do?
Leize Technology provides free installation, commissioning and training for users' technicists, ensures that uses can get familiar with operation methods and put machines into use as soon as possible;

Q4: If some problems happen to this machine, what should I do?
Leize Technology provides three years warranty and lifetime maintenance. Free repair for mechanical failure and parts damage (no human factors and force majeure factors) under warranty (replacement parts except wearing parts are provides by Leize Technology free of charge). Charging at cost when out of warranty.
