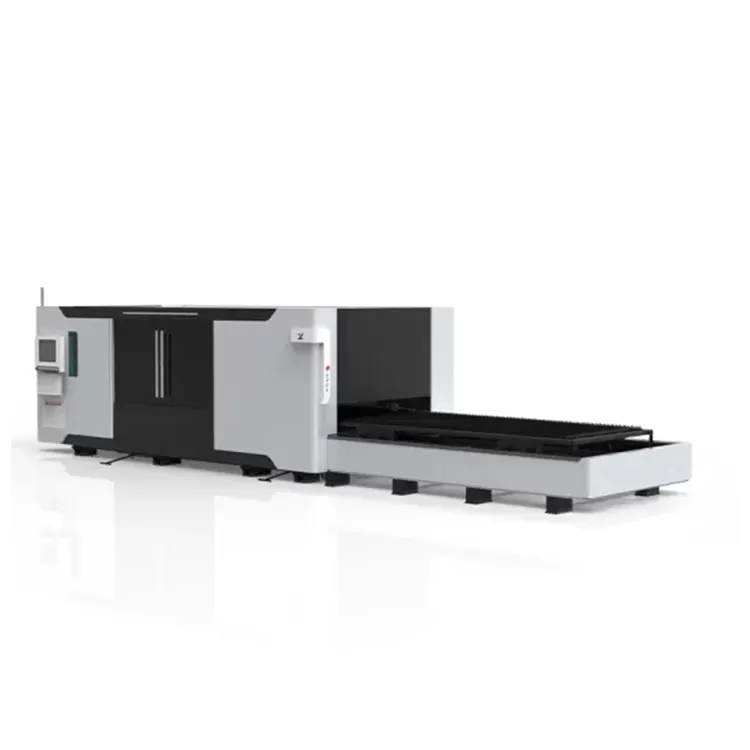

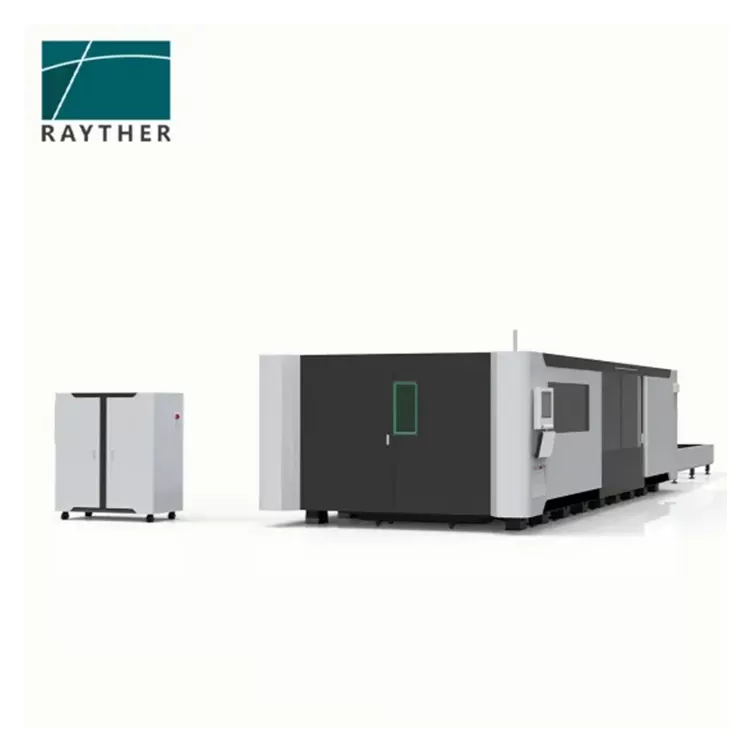

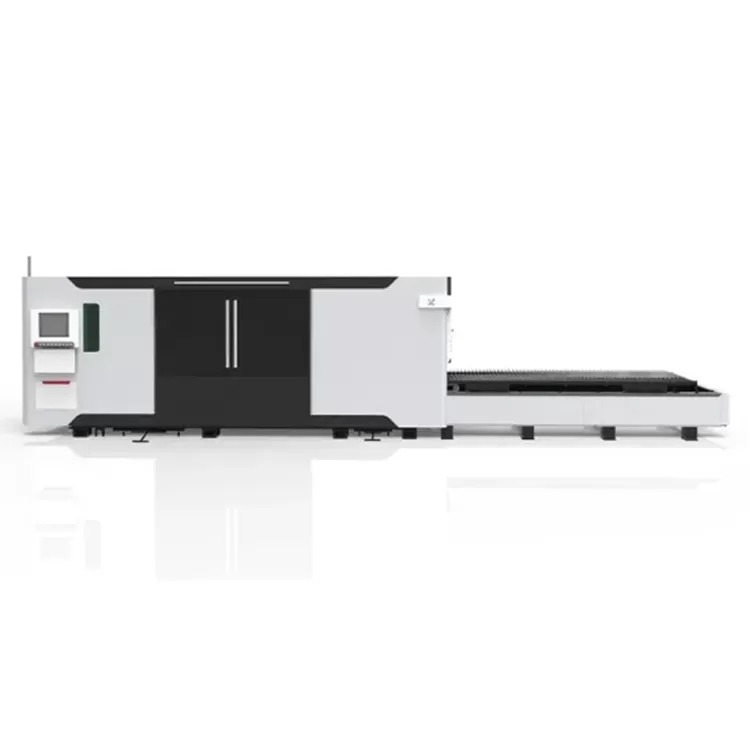

Cutting Machine with Ipg

Product Description

Equipment model	LZ-3015P
Cutting area	3000*1500mm
Machine size	8500*3300*2200mm
X-axis stroke	1520mm
Y-axis stroke	3020mm
Z-axis stroke	340mm
X, Y axis positioning accuracy	±0.02mm
X, Y axis re-positioning accuracy	±0.015mm
X, Y axis max. positioning speed	120m/min
X, Y axis max. accelerated speed	1.0G
Main Power Protection grade	IP54
Machine body weight	7.6t

Working environment requirements

Project	Name	Request	Note
Power	Total installed capacity	≥30KVA	Determined based on actual machine power
	Voltage	380±5%	Install an automatic voltage regulator and steady current device when the voltage is unstable
	Grounding resistance	≤4 ohm
	There should be no strong electromagnetic interference near the place that installs the machine. Avoid radio transmitters or relay stations around the place
Cooling water	Water for cooing	MUST use purified water, deionized water or distilled water
Air	Oxygen, nitrogen	Purity>99.5%	Due to different processing parameters of different materials
	Air compressor	Pressure≥ 2.5mpa
Working environment	Temperature	-5ºC-40ºC
	Humidity	≤80%, No dew
	Foundation	Amplitude <50um, amplitude acceleration <0.05g	If there's a seismic source, it needs to be a seismic ditch.
	Equipment space requirements are guaranteed to be smoke-free and dust-free, avoiding dusty working environments such as metal polishing and grinding, and must be installed with anti-static floor and connecting shielded wires.

FAQ
Q: Are you a trading company or a manufacturer?
Answer: We are factories. And we have been in the laser field for 5 years.
Q: How long is your delivery time?
A: It usually takes 3 to 10 days to receive your advance payment. The exact delivery time depends on the item and quantity you ordered.
Q: Do you provide samples? Is it free or extra?
A: Yes, we can provide samples for free, but the customer should pay the courier fee.
Q: What are your payment terms?
A: Payment <= 1000USD, 100% in advance. Payment> = 1000USD, 30% T / T in advance, the balance before shipment.
