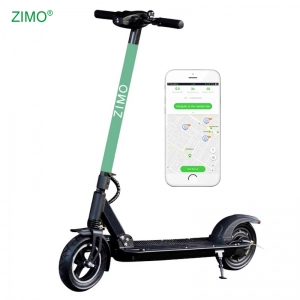

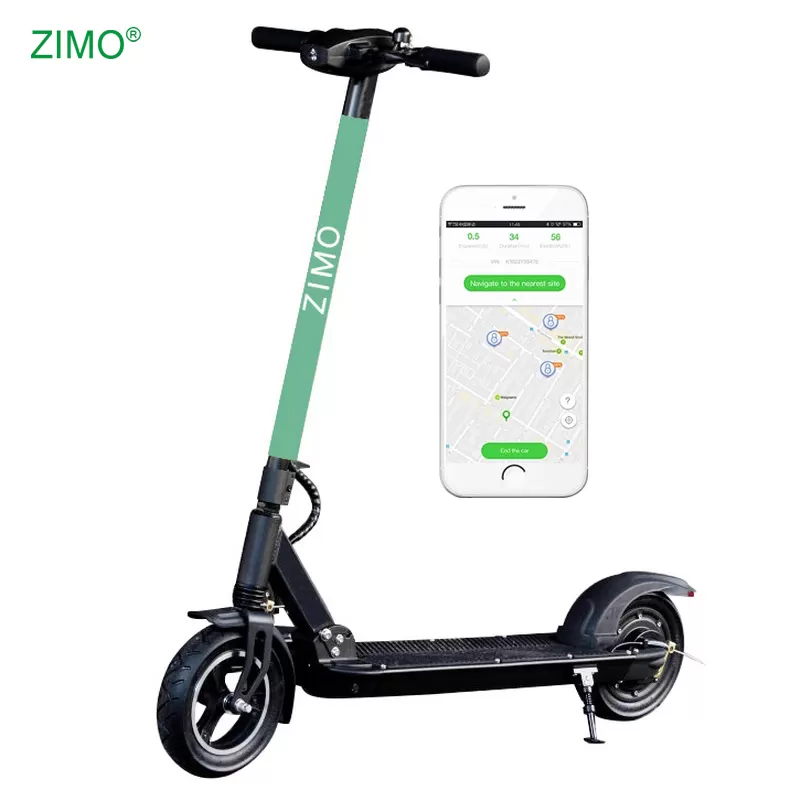

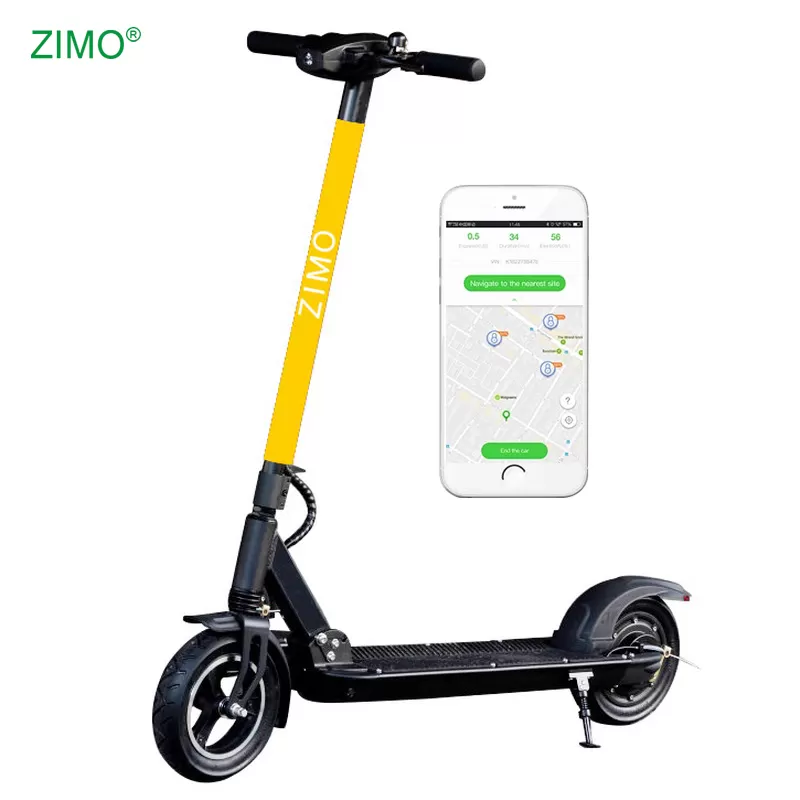

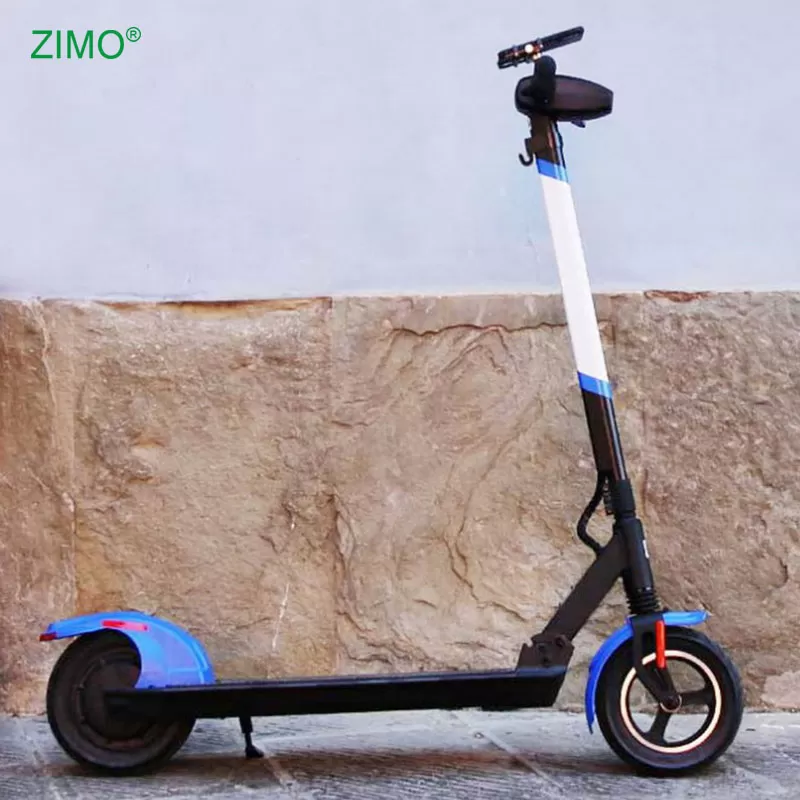

Introduction:GPS Rental Electric Scooter
Description
SPECIFICATION | Sharing Scooter S1 |
Frame | Aircraft-grade aluminum alloy |
Tire | 10inch non-inflatable tire |
Motor | 10-inch waterproof motor(115 iron core 33-layer magnetic steel) |
Color | Black |
IP Grade | IP67 |
Payload | 25～100 kg ( 55～220 lbs ) |
Max. Climbing Angle | Approx. 18° |
Operating Temperature | "‐10°C ~ 40°C (14 ~ 104°F) |
Storage Temperature | "‐20°C ~ +50°C ( ‐4°F～122°F ) |
Max Speed | 25 km/h |
max torque | 23 N·m |
Rated power | 350W |
Max Power | 600 W |
Motor control mode | FOC,control algorithm for double closed loop(current loop + speed loop) |
Brake mode | EABS+ Drum brake |
Tire material | Non-inflatable tire filled with composite material |
battery | 36V DC, 396Wh, 18650 Samsung Lithium Cells (576Wh Panosonic) |
Battery capacity | 396-576 Wh |
Front light | 1.1W High brightness dual lighting system |
Rear light | Double LED tail light |
Battery indicator | APP indication |
Communication Documents We Will Supply.
1. BLE Debuger app User's Manual V1.0
2. IOT BLE Communication Protocol V1.34
3. IOT Server Communication protocol V1.0
4. MQTT Server Device Communication Manual V0.5
5. FAQ about ZIMO Sharing Scooter S1.
FAQ
Q. Is it possible to buy a sample to test?
Yes. You can buy a sample to test with our platform for demo after we know you more. You do not have to worry about the quality of scooters, because we are professional manufacturer of scooters and experienced exporters. We know scooters and we know scooter sharing business. As you know, China is the capital of bike sharing, E-bike sharing and car sharing as well as Power bank sharing. We can see sharing business everywhere. What you should consider about is ARE YOU READY TO DO THIS BUSINESS.
Q. What do we need if we want to do scooter sharing business?
There are some requirements if you want to do this sharing business.
A. You need to communicate with local government to get their permit.
The permit to allow your scooters can drive on the road and agree you can do this rental business.
B. You need to prepare a lot of money to buy many scooters and pay the software & service.
C. You need to find investor to enable this business can come true. You also need hire workers who help you. like 2 engineers, call center and managers who can help you..
Q. How to charge the scooter for e scooter sharing? Who will charge?
You can set up fixed location for return and each location is equipped with charging port. When returned, the scooter must be connected with charger. Otherwise, the rental will not stop and still calculate the cost. So user will be forced to charge for you.
Q. Why the scooter is so expensive? the software is also expensive, why?
We are not only selling you a scooter, we are helping you make money from this business. We make scooters and also help you set up your own platform. When you have it, you will be a service provider, like telecom company, everyone will pay you once they use your service. This is long time money. If the scooter or software is not good enough, you have to maintenance all the time. Do you want to save money from scooter or you want to pay a little more money more for a durable money maker? In China, you can find many many factories who sell cheap scooters but they will not help you when you need assistance. Cheap product, cheap service, low quality for sure. No one work for free. Good product are NEVER cheap.
