PRINTER

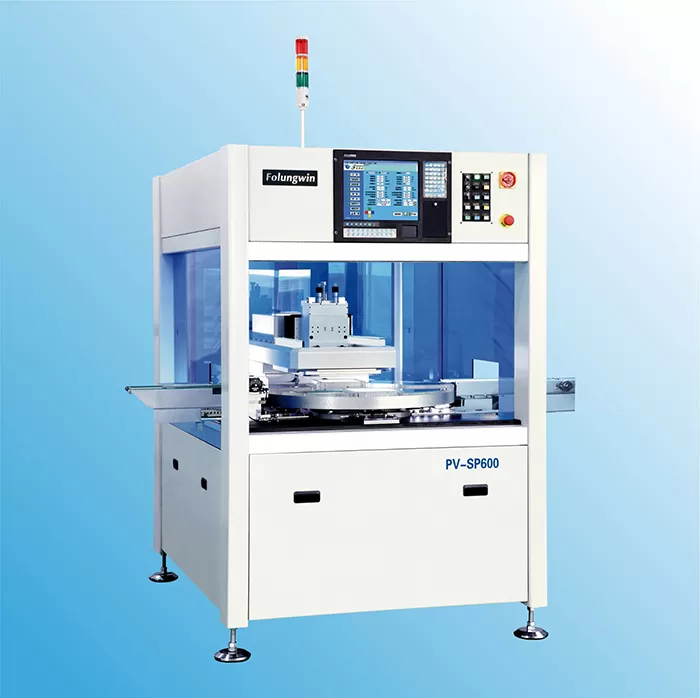

Automated Vision Screen Printer PV-SP600(1)The machine comes with specially rotary table，four work station and special drive motor.While high speed and high accuracy printing is in process the cell co.

(1)The machine comes with specially rotary table，four work station and special drive motor.While high speed and high accuracy printing is in process the cell comes in or out simultaneously eliminsting the cell transport time and results in output of up to 1800 pices of cells per hour.

(2)Specially made pneumatic constan-pressure squeegee system ensures high accuracy printing performance.Automated aqueegee in and out and squeegee pressure is automaticslly adjusted to compensate cell thickness variations.Printing modes can be set according to actual productions.

(3)Actual position of the cell can be adjusted through the special drive motor.Screen adjustment along the X,Y and θdirection is controlled by the vision system and the industrial control competer.

(4)The vision system can inspect the cells before and after printing and align the screen autonmatically.When paper is dirty and needs to be changed ,alarm will be generated and this ensures a clean printing atmosphere.

(5)The handling system ensures smooth transportaion and vertical lift of the cells and can deal with celles of different sizes via simple sdjustment.
