Introduction:808 8-axis CNC High-speed Spring Coiling Machine is composed by 8 Japan Yaskawa motor and TaiWan control system, each axis can work independently and synchronously.
| Axis count | 8 axis |
| Wire size range | 0.15-1.0mm |
| Max outside diameter | 25mm |
| Max feeding speed | 300m/min |
| Spring index | 3 |

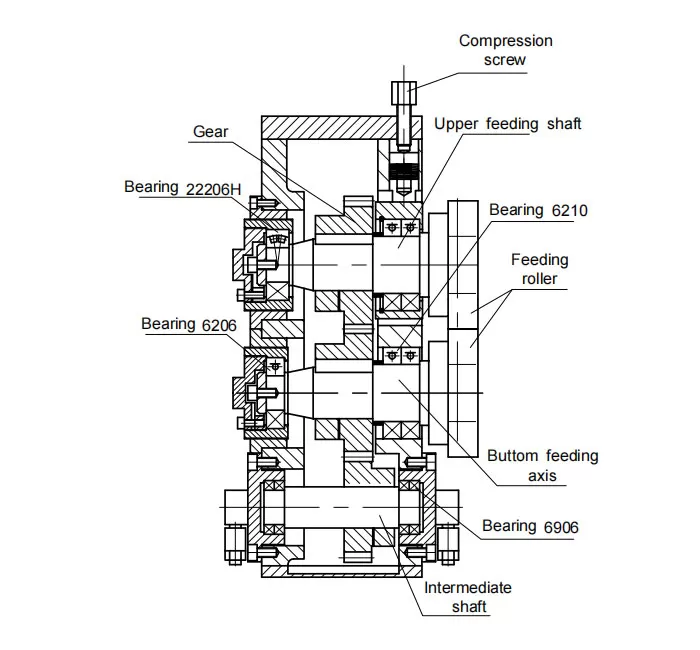

| Feeding wheel pairs | 1 pairs |
| Feeding motor | 1.8kw |
| Up&down cutter motor | 0.75kw *2 |
| Cam motor | 0.4kw*2 |
| Pitch motor | 0.75 kw |
| Mandrel moving up-down motor | 0.75kw |
| Mandrel Return Motor | 0.4 kw |
| Dimension | 950*1150*1700mm |
| Weight | 600 kg |
| Power | 3-380VAC |
