sheet plate embossing machine

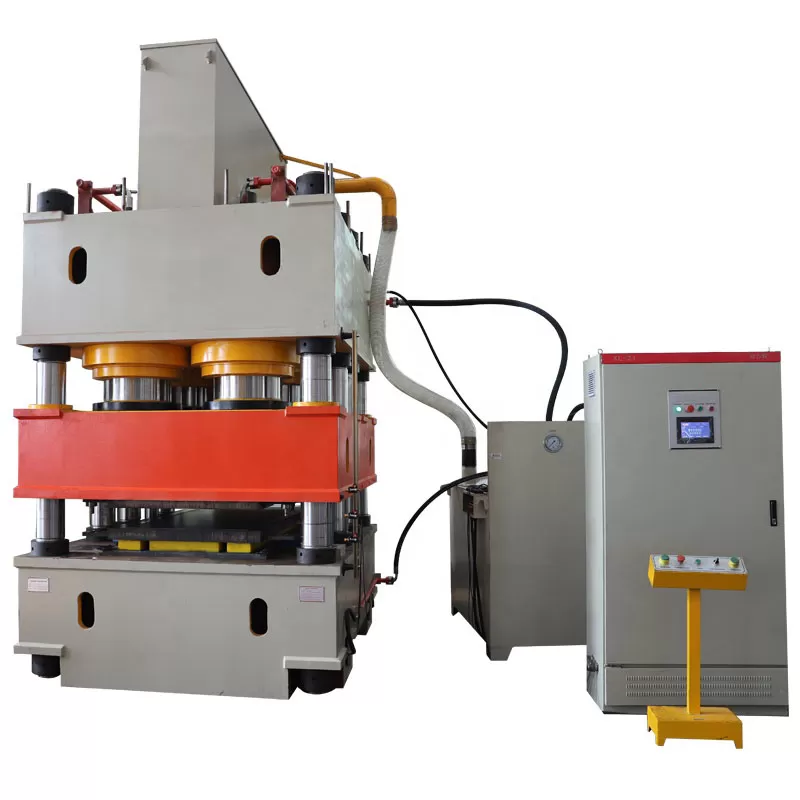

Introduction:3000 ton Steel door skin sheet plate embossing machine

3000 ton Steel door skin sheet plate embossing machine

Characteristic:
1. With PLC controlling + touching screen.
2. With excellent quality hydraulic station, good pumps, good water cooling system.
good hydraulic oil filtering system, good motors-shandong huali motor.
3. Strong frames, with several ram guiding.
4. Available working pressure, speed and stroke settings.
5.The filling tank is placed in the middle for higher safety factor

PRODUCT SPECIFICATIONS

No	Project	3000t	3600t	4500t
1	Max liquid working pressure	25	31.5	31
2	Slide stroke	400	400	400
3	Max opening height	500	500	500
4	Worktable size	*15002500**	*15002500**	*15802550**
5	Descent speed	150	150	150
6	Working speed	5-10	5-10	5-10
7	Return speed	80	80	80
8	Motor power	44	44	60
