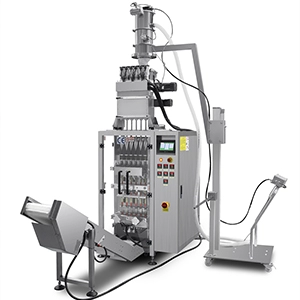

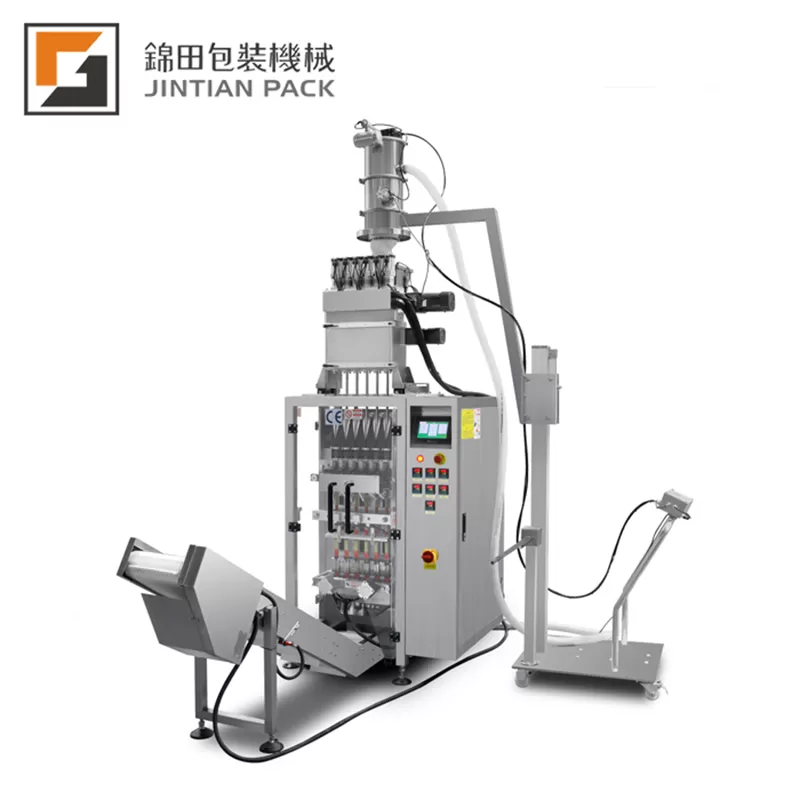

Powder packing machine

Introduction:Powder multi-lanes packing machine suitable for different kinds of powder like coffee powder, protein powder etc.

Technical characteristics:

1. Machine with advanced technology, beautiful appearance, reasonable structure, stable performance, precise operation, efficient and durable, easy to operate, energy saving and other diversified quality characteristics. Set of measuring, bag making, filling, sealing, cutting, testing, coding, counting, transport and other processes in a fully automatic multi-functional packaging machine.

2. Machine manually using man-machine interface, automatic detection and alarm system program, application imports PLC, cylinder, optical, touch screen, temperature controller, frequency converter, relays, servo motor, high quality power supply circuit.

3. famous branch Servo motor for pulling film system

4. PID temp. controller within 1 degree

Application:

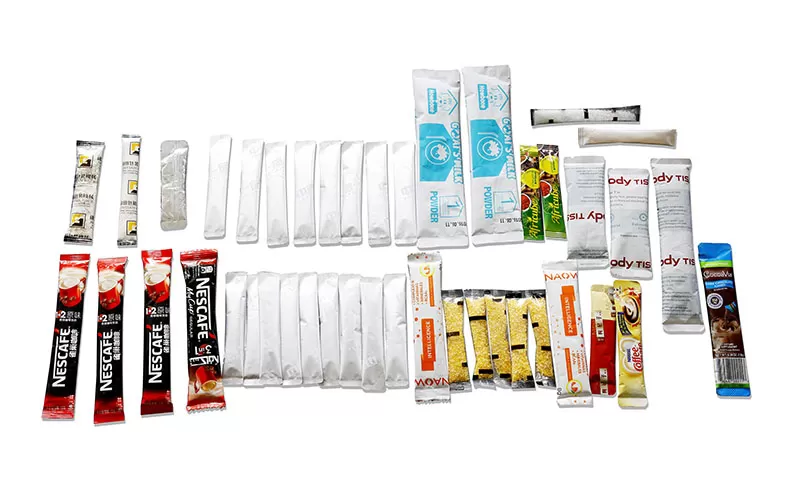

Suitable for different kinds of powder like coffee powder, protein powder etc.

Technical parameters:

Type	JT-420-6K
Bag length	40--200mm(L)
Bag width	15---70mm(W)
Max width of roll film	420mm
Packing speed	20—50 bag /min / lane
Air consumption	0.65mpa
Gas consumption	1.5m³/min
Power voltage	220VAC/50Hz
Power	2.2 KW
Dimension	1700mm(L)990mm(W) 2100mm (H)
Weight	1100kg
