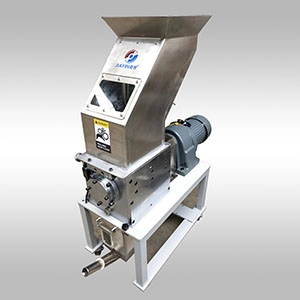

Slow machine side shredder

Introduction:The machinery MBL series adopts Taiwan Shengbang decelerating motor, with stable performance, long life and large torque.

Features:

1. MBL series adopts Taiwan Shengbang decelerating motor, with stable performance, long life and large torque.

2. The cutter teeth are made of imported SKD-11 material.

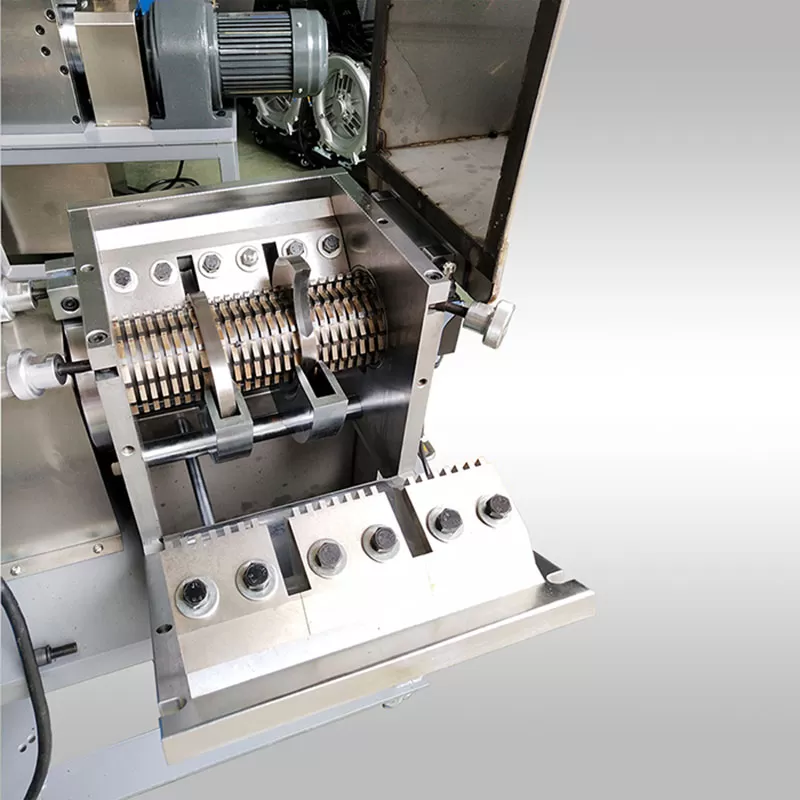

3. Adopting the integrated design of tooth knife and claw knife, coarse crushing and fine crushing are carried out at the same time,

Evenly pulverized with very little dust, it can be mixed with new materials immediately.

4. The reducer and the main shaft are connected by a coupling, which is stable in operation and low in noise.

5. The feeding nozzle and receiving barrel are made of stainless steel, equipped with PC transparent board, which is convenient for viewing materials.

6. No screen design, evenly crushed particles, and very little dust.

7. Rigorous structure, space saving, convenient and quick cleaning.

Electrical Control:

MBL slow speed machine side crushing series, suitable for injection molding machine, with machine side, recycling device, dryer, etc. to form a set of fast recycling system. This system can eliminate the complicated intermediate links in the recycling process, greatly avoiding the secondary pollution and waste of manpower, materials, and achieving the best recycling effect. It is widely used for on-site crushing and recycling of injection molding machine side nozzle materials and a small amount of defective products.

Standard:

Model	Smash caliber	Crushing ability	Rotating speed	Hook knife	Fixed knife		Rotary knife	PowerKW		Weight
Model	Smash caliber	Crushing ability	Rotating speed	Hook knife	Before	Rear	Rotary knife	Smash	Recycle
MBL-2315	230*165	3	26	1	2	1	2	0.75	0.55	200
MBL-2325	230*255	5	26	2	3	1	3	1.5	0.55	240
MBL-2335	230*345	8	26	3	4	1	4	2.2	0.55	280
MBL-2925	290*255	12	26	2	3	1	3	2.2	0.55	300
MBL-2935	290*345	15	26	3	4	1	4	2.2	0.55	350

Equipped with special receiving barrel for suction machine, add "A" after the model

Equipped with immediate recovery device, add "AS" after the model

Machine voltage 3 phase/380V/50HZ
