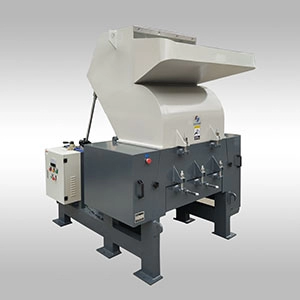

Large powerful crusher

Features:

1. MSC series grinder, there are 6 knife types for customers to choose. It has a wide range of applications, and can be used to crush and recycle plastic products of various materials and shapes.

2. The design of the lower lock blade increases the cutting angle of the blade and improves the cutting efficiency. The shape of the formed particles is uniform and the powder is less. It can be divided into "D" flat knife type and "Y" claw knife type for wider application.

3. "I" type and "V" type knives are specially designed to crush PP, PE bottles, cans, barrels and waste paper, film, woven bags and other materials of different materials.

4. The feeding nozzle has double-layer sound insulation and low noise

5. Adopt high-quality bearings and large-mass inertia wheel design with strong crushing ability.

6. The blade is made of high chromium alloy steel with good toughness. Good wear resistance, adjustable blade extension length can be used repeatedly.

7. Equipped with electric control safety protection device to ensure safe operation. Compact structure, no hidden materials, easy to clean, easy to use and maintain

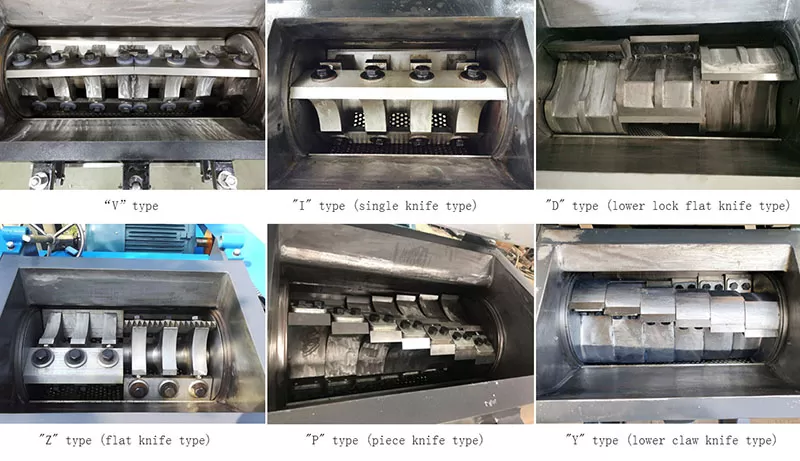

Crushing knife type:

Standard:

Model	Smash caliber      （mm）	Power      （KW）	Rotary knife type Number of knives (PCS)						Number of fixed knives      （PCS）	Crushing ability      （kg）	Dimensions      （cm）	Weight      （kg）
			“V”      type	“I”      type	“D”      type	“Z”      type	“P”      type	“Y”      type
MSC-0305	265*220	4	/	3	/	/	15	/	2	100-200	65*95*110	240
MSC-0575	320*220	5.5	/	/	/	/	9	/	2	120-240	70*100*125	300
MSC-7510	380*240	7.5	/	3	/	6	12	/	2	150-300	83*110*133	500
MSC-7515	500*280	11	/	3	/	6	15	/	2	200-400	93*128*140	600
MSC-1520	520*320	15	6	3	/	6	15	/	2	300-500	108*150*170	1000
MSC-2030	630*360	22	6	3	/	6	21	/	2	500-800	120*168*181	1250
MSC-0350	710*500	37	6	3	/	6	21	/	2	600-1200	145*215*208	2000
MSC-5075	800*630	45	6	/	/	6	21	/	4	800-1500	160*210*262	2500
MSC-75100	1020*800	55	/	/	9	/	/	/	4	900-1800	188*242*268	3800
MSC-75120	1220*820	55	/	/	12	/	/	/	4	1000-2000	220*252*322	4500
MSC-75150	1520*1000	75	/	/	15	/	/	/	6	1100-2200	242*262*360	6000
MSC-600P	600*360	15	/	/	/	/	18	/	4	300-500	120*150*180	900
MSC-600C	620*380	22	/	/	/	/	18	18	2	500-800	125*162*188	1100
MSC-700P	710*460	22	/	/	/	/	21	21	2	600-800	141*195*200	1400
MSC-800P	810*460	30	/	/	/	/	24	24	4	600-1000	151*205*208	1700
MSC-800C	810*510	37	/	/	/	/	24	/	4	600-1200	153*212*226	2000
MSC-900P	910*510	37	/	/	/	/	27	27	4	700-1200	163*216*227	2300
MSC-1000P	1020*650	45	/	/	/	/	30	30	4	800-1500	182*235*240	2800
