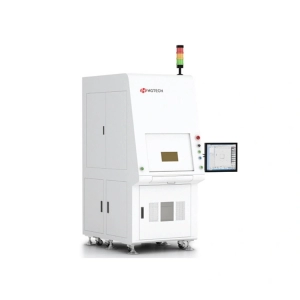

Fiber Laser Marker Engraving Machine

Introduction:Fiber Laser Marker Engraving Machine

Product Description

Laser Parameter	Laser Source	Fiber laser
Wavelength	1064nm
Output Power	20W
Laser Beam Quality M²	<1.2
Pulse Repeatable Frequency	10kHz~200kHz
Cooling Method	Air cooling
Processing Parameter	Focusing Lens	Standard	Optional
Processing Range	140×140×60mm	160×160×70mm
Lens Focal Length	200mm	254mm
Max Speed in X-Y Axis	6m/s
Max Speed in Z Axis	4m/s @45°
Min Linear Width	150μm
Positioning Accuracy	25μm
Contraposition Accuracy	20μm
Whole Machine Parameter	Operating Ambient Temperature	18~28ºC
Power Demand	Single phase AC220V 10A	Three phase AC380V 10A
Overall Power Consumption	3KW
Dimension (width×length×height)	Mainframe 1200×1000×1610mm Smoke Dust Exhaust Ventilator 680×650×1550mm
Weight	Mainframe 350kg Smoke Dust Exhaust Ventilator 100kg

1. High precision of 3D positioning technology, high-speed focusing and scanning system, short pulse, high-peak power and HPRF (High Pulse Repetition Frequency);
2. With friendly operation interface, it is suit for many file formats, such as dxf, plt, cnc, step, iges, etc;
3. High electro-optic conversion efficiency, long life and easy maintenance;
4. Fast marking speed and high processing efficiency.
It's suitable for all kinds of metals and nonmetals laser marking on 3D surface. It's widely used in mobile manufacture, cubic circuits, medical equipments, moulds, 3C electronics, auto parts, electronic communication, etc.

FAQ:
Q1 :How about warranty?
A1:3 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge(some parts will be maintained) when if any problem during the warranty period.

Q2: I don't know which one is suitable for me ?
A2:Please tell me your
1) Max work size:We can do work size with 110*100mm-----300mm*300mm.
2) Materials and marking effect:we will check whether our machine is suitable for you or not and choose a most suitable power and optional parts.

Q3:Payment terms?
A3:TT/West Union/Payple/LC/Cash and so on.

Q4:Do you have CE document and other documents for customs clearance?
A4:Yes,we have Original. At first we will show you and And after shipment we will give you CE/Packing list/Commercial Invoice/Sales contract for customs clearance.

Q5:I don't know how to use after i receive Or i have problem during use,how to do?
A5:
1) We have detailed user manual with pictures and CD,you can learn step by step.
2) If have any problem during use,you need our technician to judge
The problem elsewhere will be solved by us. We can provide team viewer

Whatsapp/Email/Phone/Skype with cam till all of your problems finished.We can also provide Door service if you need.
