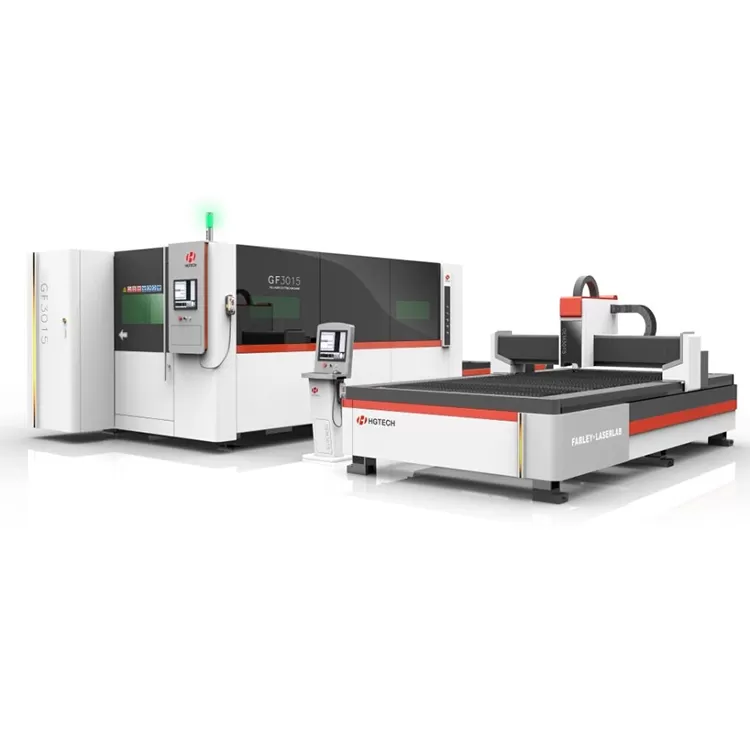

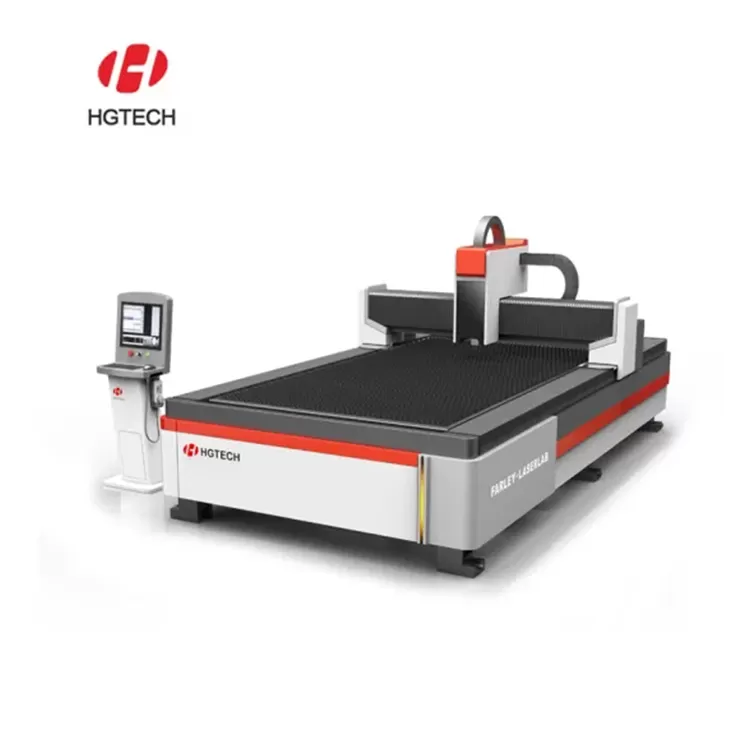

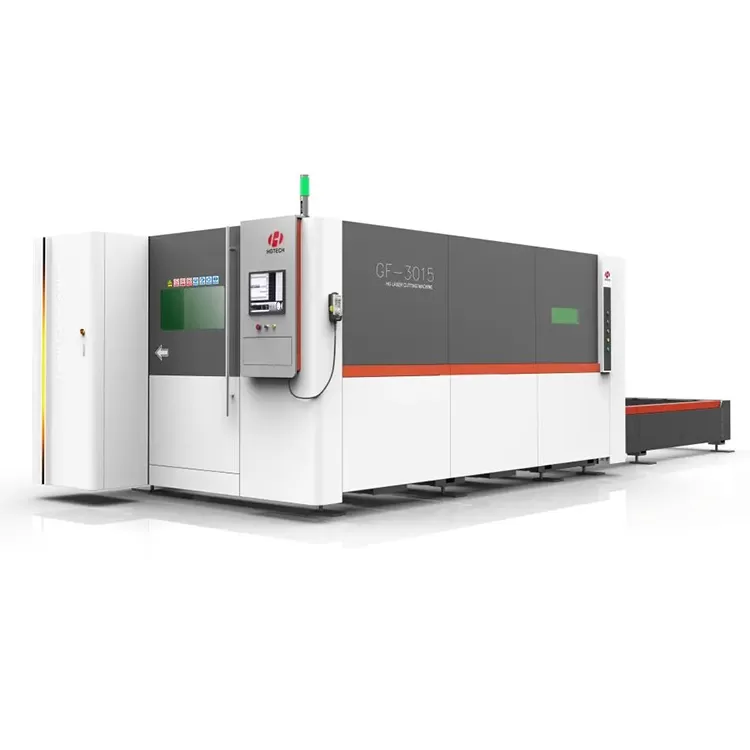

CNC Auto Laser Metal Cutting Machine

Introduction:CNC Auto Laser Metal Cutting Machine

Product Description

Fiber laser cutting machine adopting world famous Germany fiber laser source and USA laser mech cutting head and dynamic focus system, it can cut and punch different kinds of metal material with high precision and high speed. Since laser is transmitted by fiber , it is no need to maintenance or adjusts the laser optical path , it greatly reduces the machines fault rate and prolongs the working life. Large format cutting area meets the demands of various kinds of metal processing .

GF3015 Laser cutter is widely used for carbon steel, stainless steel, aluminum and other metal materials cutting and forming, with high speed, high precision, high efficiency, cost-effective and energy saving. It is the first choice of the metal processing industry.

Machine Model		GF3015	GF4020	GF6020
Cutting Area (LXW)		3000mmX1500mm	4000mmX2000mm	6000mmX2000mm
Laser Source		HGTECH-Raycus	HGTECH-Raycus	HGTECH-Raycus
Laser Type & Powert		Fiber & 1000/1500/2000/3000	Fiber & 1000/1500/2000/3000	Fiber & 1000/1500/2000/3000
Laser Wavelength		1070nm±10nm	1070nm±10nm	1070nm±10nm
CNC System		CYPCUT	CYPCUT	CYPCUT
Servo Motor		YASKAWA (Japan)	YASKAWA (Japan)	YASKAWA (Japan)
Laser Cutting Head		Raytools	Raytools	Raytools
Display		19'Industry LCD	19'Industry LCD	19'Industry LCD
Max Moving Speed		80m/min,Acceleration is 0.8G	80m/min,Acceleration is 0.8G	80m/min,Acceleration is 0.8G
Position Accuracy ( X and Y axis)		±0.05mm	±0.05mm	±0.05mm
Reposition Accuracy ( X and Y axis)		±0.03mm	±0.03mm	±0.03mm
Stroke	X-axis	1530mm	2030mm	2030mm
	Y-axis	3050mm	4050mm	6050mm
	Z-axis	100mm	100mm	100mm
Motion	X and Y axis	Rack & Pinion	Rack & Pinion	Rack & Pinion
Structure	Z-axis	Ball Screw	Ball Screw	Ball Screw
Power Supplier Requirement		380V 50/60Hz 50A	380V 50/60Hz 50A	380V 50/60Hz 50A
Max Loading (KG)		600KG	1300KG	1900KG
Machine Weight		≤4000kg	≤5000kg	≤6000kg
Appearance Size		4250mmX2430mmX1800mm	5555mmX3050mmX1800mm	7850mmX3050mmX1800mm

FAQ:

1.Q:Are you a factory or trading company?
A: We are a factory for laser equipment.

2.Q:Where is your factory located? How can I visit there?
A: Our factory is located in Wuhan, Hubei Province,China.You can fly to Shanghai airport directly. All our
clients, from home or abroad, are warmly welcomed to visit us!

3.Q:How does your factory do regarding quality control?
A:"Quality is priority. we always attach great importance to quality controlling from the very beginning to the very end. Our
factory has gained ISO,BV authentication.

4.How about your service?
A:We provide 5 years warranty. Besides, we will provide solutions in one day and solve complaints in two days.

5.Trade Terms:
♦Payment: T/T,Western Union,MoneyGram,PayPal; 30% deposits;70% balance before deliverying.
♦Delivery Time: 20-35 days
♦MOQ: 1 pcs
