Introduction:FHS22 Contactless type sensor Rotary position sensor Hot new Inductive Proximity Sensor CE ROHS ISO9001 ISO14001 ISO18001

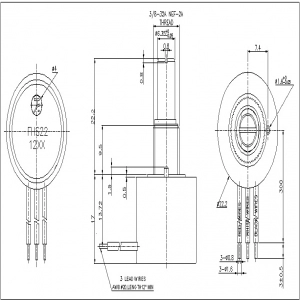

Introduction

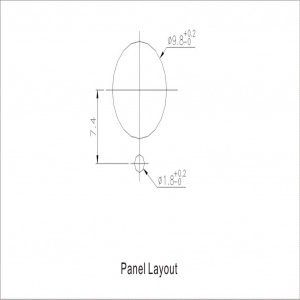

Electrical characteristics | |
Output voltage | 0.2SVdc to 4.75Vdc typical (see Voltage Output Codes) |
Output current | ±8mA Max |
Input voltage | 5Vdc±10% |
Supply current | ±7.5mA typical 11mA Max. |
Independent Linearity | ±0.5% (± 0.25% available) |
Output load | 10KΩ typical 1KΩ Min |
Output temperature characteristics | Within ± 3% Vout/FS |
Effective electrical angle | 15° to 360° (360° is typical) |
Mechanical characteristics | |
Rotational torque | Within 5mN.m;Within 20mN.m (O-ring seal) |
Total rotational angle | 360° (Endless) |
Push strength | 10Kg Min. |
Pull strength | 10Kg Min. |
Shaft material | Stainless steel |
Bushing material | Phosphor bronze |
Environmental characteristics | |
Storage temperature | -55°C to +125°C |
Operating temperature | -40°C to +125°C |
Rotational life | 10 Million cycles Min (With bushing bearing) |
Shock | Per MIL R-39023, 6 ms Saw-tooth 100 G's, 18times |
Vibration | Per MIL R-39023, 10 G's, 100 to 500 Hz, 12Hrs |
ESD | 8 KV max. (human body model); 15KV air discharge. |
EMI | 100V/m, 200MHz~1GHz |
Soldering condition | Manual solder: 350° Max, 3Sec. Max. |
IP Grade | IP50 Standard;IP65 Option Available |
Exposure at High Temperature | 1000 hours at +125°C |
Exposure at Low Temperature | 24 hours at -50° C |
