plastic bag snack Food packaging machine

Introduction:Fully automatic plastic small bag snack Food packaging machine with multihead weigher

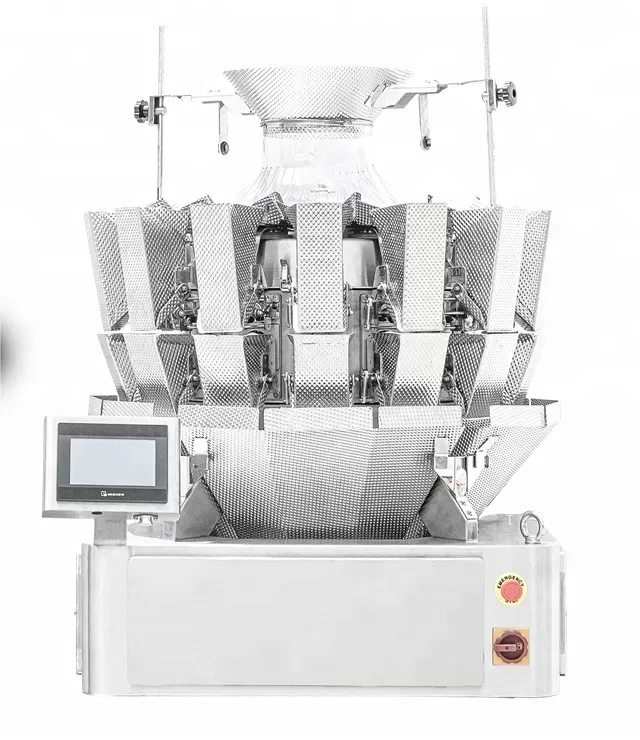

Fully automatic plastic small bag snack Food packaging machine with multihead weigher

Application:

The Multihead Weigher is suitable for weighing of granule, slice, roll or irregular shape materials such as cereal, pasta, bean sprout, candy, seed, chips, coffee bean, nut, puffy food, biscuit, chocolate, pet food, frozen foods, etc. It is also suitable for non-food industry such as screws, bolts and plastic components.

Main Features:

Modual Control System,easy trouble sorting and maintenance cost saving.
Multi-language HMI available.
Automatic or manual adjusting of linear feeding channels according to products difference.
Load cell or photo sensor to detect feeding level of product.
Preset Stagger dumping function to avoid blockage during product dropping.
Production records can be checked and downloaded to PC.
Food contact parts can be disassembled without tools,easy clean.
Remote control and Ethernet available(by Option).

Specifications:

Model	HS-H14L1.6	HS-H14L2.5
Weighing Head	14	14
Weighing Range	10-1,500g	10-3,000g
Weighing Accuracy	±0.1-1.5g	±0.1-2g
Max.Speed	120WPM	120WPM
Bucket Capacity	1,600ml	2,500ml
Operation Panel	7 inch touch screen/10 inch for option
Power Supply	AC220V±10%,50HZ/60HZ,2KW
Drive System	Step Motor
Packing Dimension	1130(L)x1130(W)x1830(H)mm
Gross Weight	480KG
Optional Devices	Dimple plate/Timning hopper/Diverter device/10 inch touch screen/Load cell top cone

Reminder:The actual speed and accuracy depend on product features.
