Introduction:High Precision conveyor belt weight check weigher with pushing reject system

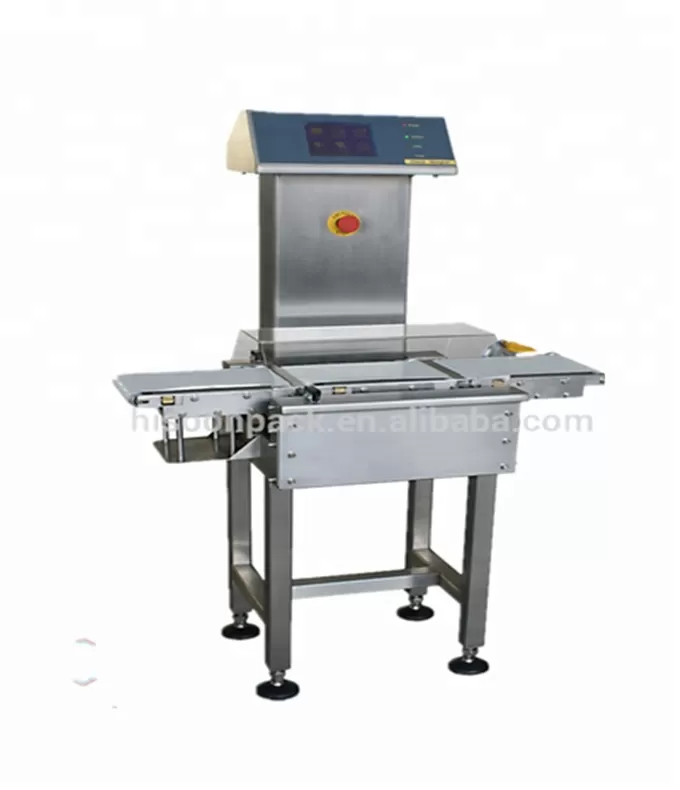

High Precision conveyor belt weight check weigher with pushing reject system
Application:
Online weight check for packed food. Step for food quality control
Features:
· Strong stainless steel structure; Waterproof design.
· High accurate load cell; Based on advanced DSP technology.
· Automatic weighing compensation and zero tracking.
· 100 products preset; Easy to edit and recall.
· Quickly product shift and speed recall.
· 2000 sorting records; Printer output ready.
· Touch screen; Friendly operation interface.
Specifications
Model | HS-500NS |
Measurement | Strain Gauge |
Rejection | Pusher with Roller Conveyor (Option) |
Operation | Touch Screen |
Alarm | Buzzer & Lamp |
Belt Speed | Max. 36m/min |
Power | AC110V/220V 50-60Hz |
Rated Output | Approx. 200W |
Dimension | L1080 x W905 x H750±20mm |
Weight | 150kg |
Product Limit | Length (mm) | Width (mm) | Height (mm) |
HS-500NS | 600 | 450 | 5-500 |
Series
Weighing Range | Accuracy | Min. Scale | Max. Sorting Speed |
100g-40Kg | ±30g | 5g | 20bags/min |
